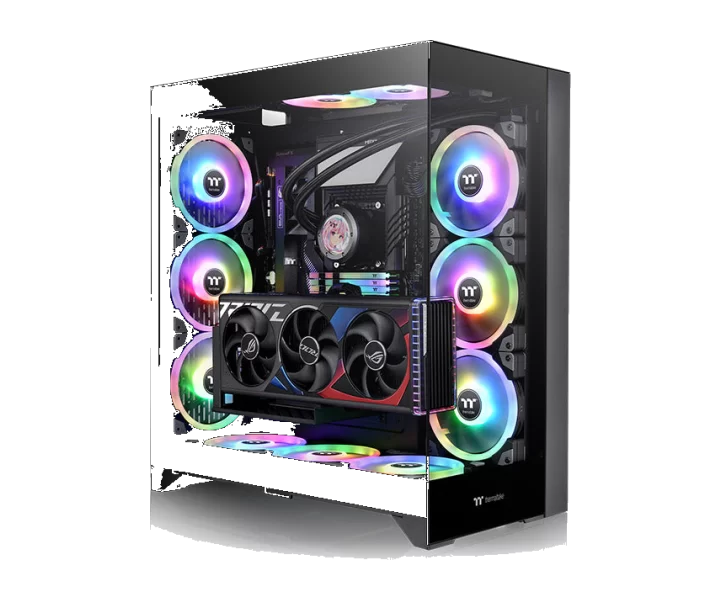

Thermaltake CTE E660 MX Mid Tower Chassis özellikleri ve fiyatları

Thermaltake CTE E660 MX Mid Tower Chassis teknik özellikleri

Model kodu

CA-1Y3-00M1WN-01

part Number

CA-1Y3-00M1WN-01

case Form Factor

Mid Tower

motherboard Support

6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 10.5” (E-ATX)

Boyutlar

558.5 x 270 x 513mm (21.99 x 10.63 x 20.2 inch)

Ağırlık

15850 g

panel Materials

SPCC

side Panel Material

4mm Tempered Glass x 2

drive Bays

3 x 3.5”, 1 x 2.5” or 2 x 3.5”, 2 x 2.5”

front Io

USB 3.0 x 2, Type-c x1, HD Audio x 1

psu Support

Standard PS2 PSU (optional)

fan Mounts

Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm ,2x 140mm, 1 x 140mm Top: 2 x 120mm, 1 x 120mm Right (M/B Side): 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm ,2x 140mm, 1 x 140mm Rear: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm ,2x 140mm, 1 x 140mm Bottom: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm ,2x 140mm, 1 x 140mm

radiator Support

Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm Top: 1 x 240mm, 1 x 120mm Right (M/B Side): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm Rear: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm Bottom (DIY only): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm

clearance Conditions

CPU cooler max height: 166mm VGA max length: 415mm (with radiator) 443.8mm (without radiator) PSU max length: 220mm

color

Black

expansion Slots

7

psu Included

Yok

cpu Cooler Max Height Mm

166

psu Max Length Mm

220

Üreticinin ayrıntılı teknik bilgileri

P/N: CA-1Y3-00M1WN-01, Case Type: Mid Tower, Dimensions: 558.5 x 270 x 513mm, (21.99 x 10.63 x 20.2 inch), Weight: 15.85 kg / 34.94 lbs., Side Panel: 4mm Tempered Glass x 2, Color: Black, Material: SPCC, Cooling System: -, Drive Bays: 3 x 3.5”, 1 x 2.5” or 2 x 3.5”, 2 x 2.5”, Expansion Slots: 7, Motherboard: 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),, 12” x 9.6” (ATX), 12” x 10.5” (E-ATX), I/O Port: USB 3.0 x 2, Type-c x1, HD Audio x 1, PSU: Standard PS2 PSU (optional), Fan Support: Front:, 3 x 120mm, 2 x 120mm, 1 x 120mm, 3 x 140mm ,2x 140mm, 1 x 140mm, Top:, 2 x 120mm, 1 x 120mm, Right (M/B Side):, 3 x 120mm, 2 x 120mm, 1 x 120mm, 3 x 140mm ,2x 140mm, 1 x 140mm, Rear:, 3 x 120mm, 2 x 120mm, 1 x 120mm, 3 x 140mm ,2x 140mm, 1 x 140mm, Bottom:, 3 x 120mm, 2 x 120mm, 1 x 120mm, 3 x 140mm ,2x 140mm, 1 x 140mm, Radiator Support: Front:, 1 x 360mm, 1 x 240mm, 1 x 120mm, 1 x 420mm, 1 x 280mm, 1 x 140mm, Top:, 1 x 240mm, 1 x 120mm, Right (M/B Side):, 1 x 360mm, 1 x 240mm, 1 x 120mm, 1 x 420mm, 1 x 280mm, 1 x 140mm, Rear:, 1 x 360mm, 1 x 240mm, 1 x 120mm, 1 x 420mm, 1 x 280mm, 1 x 140mm, Bottom (DIY only):, 1 x 360mm, 1 x 240mm, 1 x 120mm, 1 x 420mm, 1 x 280mm, 1 x 140mm, Clearance: CPU cooler max height:, 166mm, VGA max length:, 415mm (with radiator), 443.8mm (without radiator), PSU max length:, 220mm
