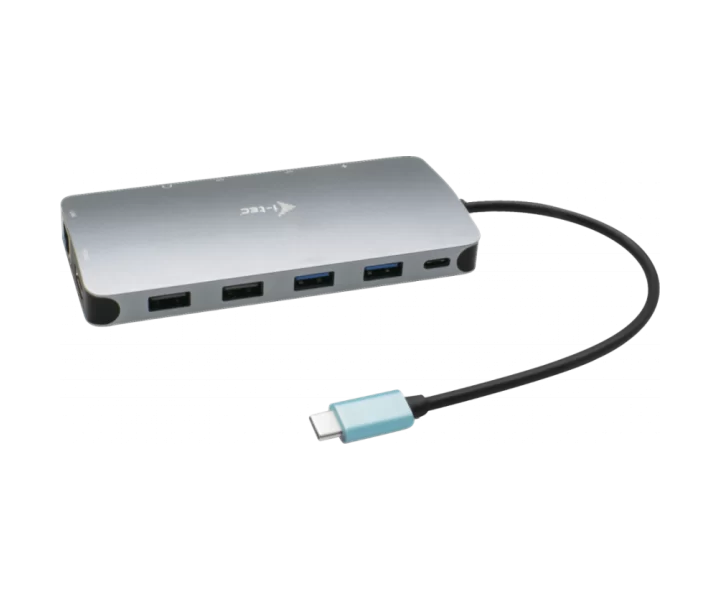

i-tec USB-C Metal Nano 3x Display Docking Station + Power Delivery 100 W özellikleri ve fiyatları

i-tec USB-C Metal Nano 3x Display Docking Station + Power Delivery 100 W teknik özellikleri

Model kodu

C31NANODOCKPROPD

Üretici parça kodu

C31NANODOCKPROPD

Hub / dock türü

Docking Station

Ana cihaz bağlantısı

1x integrated USB-C cable for connection to a device (22 cm)

USB bağlantıları

1x USB-C 3.2 Gen 1 port (5Gbps) (data only) | 1x USB-C PD port (Power Delivery only) | 2x USB-A 3.2 Gen 1 port (5Gbps) | 2x USB-A 2.0 port

Dock teknolojisi

Docking station technology: USB-C (MST)

Ana cihaza güç aktarımı ve koşulları

Power Delivery: 100 W Internal power consumption: 5-10W ( more info here )

Görüntü çıkışları

Video ports: 2x DisplayPort (DP++ support) 1x HDMI

Görüntü kipleri ve bağlantı koşulları

Resolution:

Ethernet bağlantıları

1x Ethernet GLAN RJ-45 port (Realtek RTL8153)

Ses bağlantıları

1x 3.5mm Combo Audio port

LED göstergeleri

LED indication

MAC adresi kopyalama

MAC Address cloning: Yes (using i-tec Docker Pro software)

Wake-on-LAN

WOL: S1, S2, S3

Desteklenen işletim sistemleri

OS: Windows 10 / 11, macOS*, Android**, iPadOS**, ChromeOS, Linux | Windows 10 / 11, macOS*, Android**, iPadOS**, ChromeOS, Linux

Cihaz gereksinimleri

Device with a free USB-C, USB4 or Thunderbolt™ 3/4/5 port | Device with a free USB-C, USB4 or Thunderbolt™ 3/4/5 port with Power Delivery support | Device with a free USB-C or USB4 port with DisplayPort Alternate Mode support or a Thunderbolt™ 3/4/5 port

Verilen kablolar ve uzunlukları

1x integrated USB-C cable for connection to a device (22 cm)

Üreticinin kullanım koşulları

* macOS does not support Multi Stream Transport (MST) technology. Connecting two monitors to the station on macOS will result in both monitors showing the same image. ** iPadOS, Android do not support multi-screen video transfer technology, nor the extended screen option. This means that when connected to an external monitor, only the mirrored screen will be displayed. (Not valid for androids with DEX and Easy Projection extension)

Boyutlar

Product dimensions: 127 x 60 x 19 mm

Paket boyutları

Package dimensions: 191 x 97 x 23 mm

Paket ağırlığı tanımı

Package weight: 147 g

Ağırlık

110 g

Kutu içeriği

i-tec USB-C docking station with cable (22 cm) | Quick Start manual

Üreticinin ayrıntılı teknik bilgileri

Specifications / 1x integrated USB-C cable for connection to a device (22 cm), Specifications / Docking station technology: USB-C (MST), Specifications / Power Delivery: 100 W Internal power consumption: 5-10W ( more info here ), Specifications / Video ports: 2x DisplayPort (DP++ support) 1x HDMI, Specifications / Resolution:, Specifications / Host device with DisplayPort 1.2 support: 1 monitor: 1x HDMI or DP→ up to 4K/30Hz 1x HDMI or DP → up to 1080p/120Hz 2 monitors: 1x DP + 1x HDMI → up to 2x 1080p/60Hz* 2x DP → up to 2x 1080p/60Hz* 3 monitors: 1x HDMI + 1x DP + 1x DP → up to 1x 1080p/60Hz + up to 2x 720p/60Hz*, Specifications / Host device with DisplayPort 1.4 support: 1 monitor: 1x HDMI → up to 4K/60Hz 1x DP → up to 4K/60Hz 2 monitors: 1x DP + 1x HDMI → up to 2x 1440p/60Hz* 1x DP + 1x HDMI → up to 2x 4K/30Hz* 2x DP → up to 2x 4K/30Hz* 3 monitors: 1x HDMI + 1x DP + 1x DP → up to 3x 1080p/60Hz*, Specifications / Host device with DisplayPort 1.4 with DSC support: 1 monitor: 1x HDMI → up to 4K/60Hz 1x DP → up to 5K/60Hz 1x HDMI → up to 1440p/144Hz or 1080p/240Hz 1x DP → up to 4K/144Hz or 1440p/240Hz or 1080p/360Hz 2 monitors: 1x DP + 1x HDMI → up to 2x 4K/60Hz* 1x DP + 1x HDMI → up to 2x 1440p/144Hz* 3 monitors: 1x HDMI + 1x DP + 1x DP → up to 3x 4K/30Hz*, Specifications / 1x USB-C 3.2 Gen 1 port (5Gbps) (data only), Specifications / 1x USB-C PD port (Power Delivery only), Specifications / 2x USB-A 3.2 Gen 1 port (5Gbps), Specifications / 2x USB-A 2.0 port, Specifications / 1x Ethernet GLAN RJ-45 port (Realtek RTL8153), Specifications / 1x 3.5mm Combo Audio port, Specifications / LED indication, Specifications / MAC Address cloning: Yes (using i-tec Docker Pro software), Specifications / WOL: S1, S2, S3, Specifications / OS: Windows 10 / 11, macOS*, Android**, iPadOS**, ChromeOS, Linux, Specifications / Product dimensions: 127 x 60 x 19 mm, Specifications / Product weight: 110 g, Specifications / Package dimensions: 191 x 97 x 23 mm, Specifications / Package weight: 147 g, Hardware Requirements: / Device with a free USB-C, USB4 or Thunderbolt™ 3/4/5 port, Power Delivery Requirements: / Device with a free USB-C, USB4 or Thunderbolt™ 3/4/5 port with Power Delivery support, Video Output Requirements: / Device with a free USB-C or USB4 port with DisplayPort Alternate Mode support or a Thunderbolt™ 3/4/5 port, Operating System: / Windows 10 / 11, macOS*, Android**, iPadOS**, ChromeOS, Linux, Operating System: / * macOS does not support Multi Stream Transport (MST) technology. Connecting two monitors to the station on macOS will result in both monitors showing the same image. ** iPadOS, Android do not support multi-screen video transfer technology, nor the extended screen option. This means that when connected to an external monitor, only the mirrored screen will be displayed. (Not valid for androids with DEX and Easy Projection extension), Package contents / i-tec USB-C docking station with cable (22 cm), Package contents / Quick Start manual

Güncel mağaza teklifleri

Son 48 saat içinde doğrulanmış, stokta mağaza teklifi yok. Eski fiyatlar güncel teklif olarak gösterilmez.
