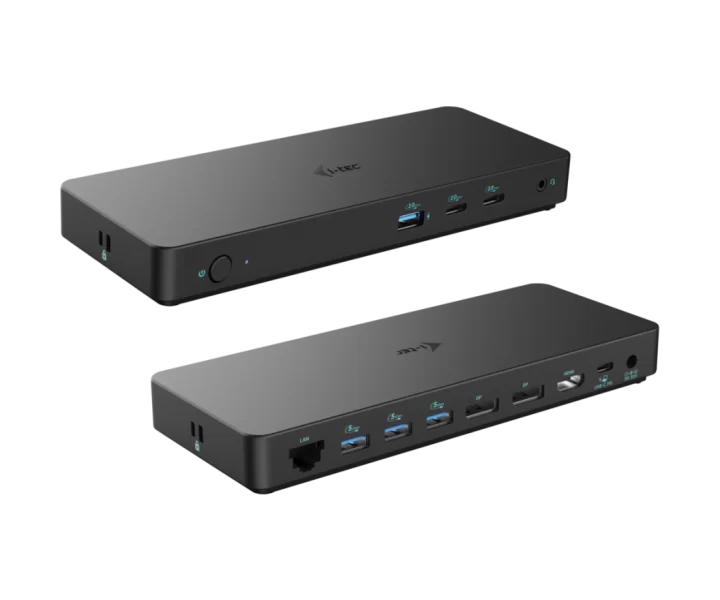

i-tec USB-C Triple Display Docking Station Gen 2 Pro + Power Delivery 100W özellikleri ve fiyatları

i-tec USB-C Triple Display Docking Station Gen 2 Pro + Power Delivery 100W teknik özellikleri

Model kodu

C31TRIPLEDOCKPDPRO2

Üretici parça kodu

C31TRIPLEDOCKPDPRO2

Hub / dock türü

Docking Station

Ana cihaz bağlantısı

1x USB-C port for connection to a laptop (100 cm USB-C cable included)

USB bağlantıları

2x USB-C 3.2 Gen 2 (10Gbps, data only) | 3x USB-A 3.2 Gen 1 (5Gbps) | 1x USB-A 3.2 Gen 2 (10Gbps) with fast charging support (BC 1.2)

Dock teknolojisi

Docking station technology: USB-C (MST)

Ana cihaza güç aktarımı ve koşulları

Power Delivery: 100 W

Görüntü çıkışları

Video Ports: 2x DisplayPort 1x HDMI

Görüntü kipleri ve bağlantı koşulları

Resolution:

Ethernet bağlantıları

1x Ethernet GLAN RJ-45 port (Realtek RTL8153)

Ses bağlantıları

1x 3.5mm Audio combo jack

Dock güç girişi

1x power input (20V/6.5A)

Güç anahtarı

ON/OFF switch to turn the docking station on and off

LED göstergeleri

LED indication

MAC adresi kopyalama

MAC address cloning: yes (using i-tec Docker Pro software)

Wake-on-LAN

WOL: S1, S2, S3

Güvenlik kilidi

Support for Kensington lock

Montaj desteği

Support for VESA mounting

Desteklenen işletim sistemleri

OS: Windows 10 / 11, macOS*, Android**, iPadOS**, ChromeOS, Linux

Verilen kablolar ve uzunlukları

USB-C 3.2 Gen2 cable (100 cm)

Üreticinin kullanım koşulları

Hardware requirements: | Device with a free USB-C, USB4 or Thunderbolt™ 3/4/5 port | Power Delivery Requirements: | Device with a free USB-C, USB4, or Thunderbolt™ 3/4/5 port with Power Delivery support | Video Output Requirements: | Device with a free USB-C or USB4 port with DisplayPort Alternate Mode support or Thunderbolt™ 3/4/5 port | Operating System: | Windows 10 / 11, macOS*, Android**, iPadOS**, ChromeOS, Linux | *macOS does not support Multi Stream Transport (MST) technology. Connecting two monitors to a macOS station will cause both monitors to display the same image. | ** iPadOS, Android do not support multi-screen transport technology or the extended screen option. This means that when connected to an external monitor, only the mirrored screen will be displayed. (Not valid for Android devices with DEX and Easy Projection extensions).

Boyutlar

Product dimensions: 212 x 82 x 23 mm

Ağırlık

366 g

Kutu içeriği

Product | USB cable from type C to type C (100cm) | Power adapter | Manual

Üreticinin ayrıntılı teknik bilgileri

Specifications / 1x USB-C port for connection to a laptop (100 cm USB-C cable included), Specifications / Docking station technology: USB-C (MST), Specifications / Power Delivery: 100 W, Specifications / Video Ports: 2x DisplayPort 1x HDMI, Specifications / Resolution:, Specifications / Host device with DisplayPort 1.2 support: 1 monitor: 1x DP or HDMI → up to 4K/30Hz 1x DP or HDMI → up to 1080p/120Hz 2 monitors: 1x DP + 1x HDMI → up to 2x 1080p/60Hz*. 2x DP → up to 2x 1080p/60Hz* 3 monitors: 1x DP + 1x DP + 1x HDMI → up to 1x 1080p/60Hz + up to 2x 720p/60Hz*, Specifications / Host device with DisplayPort 1.4 support: 1 monitor: 1x DP or HDMI → up to 4K/60Hz 2 monitors: 1x DP + 1x HDMI → up to 2x 1440p/60Hz* 1x DP + 1x HDMI → up to 2x 4K/30Hz* 2x DP → up to 2x 4K/30Hz* 3 monitors: 1x DP + 1x DP + 1x HDMI → up to 3x 1080p/60Hz*, Specifications / Host device with DisplayPort 1.4 with DSC support: 1 monitor: 1x DP or HDMI → up to 4K/60Hz 1x DP → up to 4K/144Hz or 1440p/240Hz or 1080p/360Hz 1x HDMI → up to 1440p/144Hz or 1080p/240Hz 2 monitors: 1x DP + 1x HDMI → up to 2x 4K/60Hz* 1x DP + 1x HDMI → up to 2x 1440p/144Hz* 3 monitors: 1x DP + 1x DP + 1x HDMI → up to 3x 4K/30Hz*, Specifications / 2x USB-C 3.2 Gen 2 (10Gbps, data only), Specifications / 3x USB-A 3.2 Gen 1 (5Gbps), Specifications / 1x USB-A 3.2 Gen 2 (10Gbps) with fast charging support (BC 1.2), Specifications / 1x Ethernet GLAN RJ-45 port (Realtek RTL8153), Specifications / 1x 3.5mm Audio combo jack, Specifications / 1x power input (20V/6.5A), Specifications / MAC address cloning: yes (using i-tec Docker Pro software), Specifications / WOL: S1, S2, S3, Specifications / ON/OFF switch to turn the docking station on and off, Specifications / LED indication, Specifications / Support for Kensington lock, Specifications / Support for VESA mounting, Specifications / USB-C 3.2 Gen2 cable (100 cm), Specifications / OS: Windows 10 / 11, macOS*, Android**, iPadOS**, ChromeOS, Linux, Specifications / Product dimensions: 212 x 82 x 23 mm, Specifications / Product weight: 366 g, Specifications / Hardware requirements:, Specifications / Device with a free USB-C, USB4 or Thunderbolt™ 3/4/5 port, Specifications / Power Delivery Requirements:, Specifications / Device with a free USB-C, USB4, or Thunderbolt™ 3/4/5 port with Power Delivery support, Specifications / Video Output Requirements:, Specifications / Device with a free USB-C or USB4 port with DisplayPort Alternate Mode support or Thunderbolt™ 3/4/5 port, Specifications / Operating System:, Specifications / Windows 10 / 11, macOS*, Android**, iPadOS**, ChromeOS, Linux, Specifications / *macOS does not support Multi Stream Transport (MST) technology. Connecting two monitors to a macOS station will cause both monitors to display the same image., Specifications / ** iPadOS, Android do not support multi-screen transport technology or the extended screen option. This means that when connected to an external monitor, only the mirrored screen will be displayed. (Not valid for Android devices with DEX and Easy Projection extensions)., Package contents / Product, Package contents / USB cable from type C to type C (100cm), Package contents / Power adapter, Package contents / Manual
