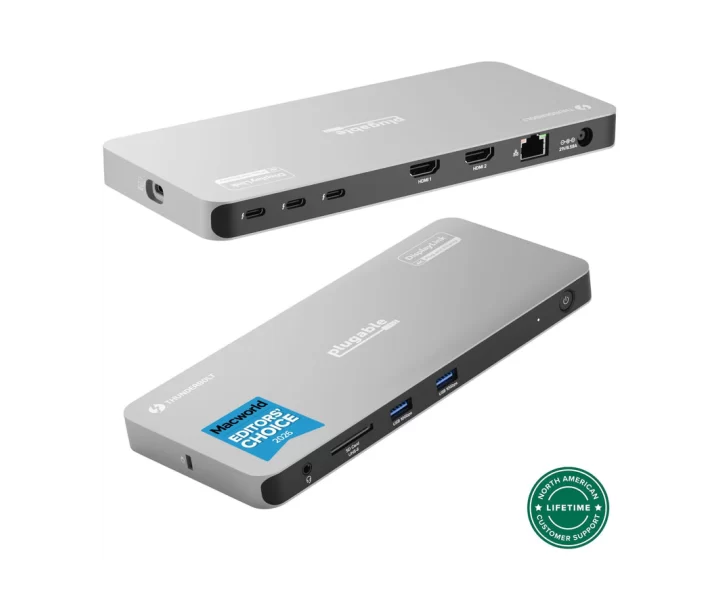

Plugable Thunderbolt 4 Docking Station for 4K Quad Monitors, 100W Laptop Charging özellikleri ve fiyatları

Plugable Thunderbolt 4 Docking Station for 4K Quad Monitors, 100W Laptop Charging teknik özellikleri

Model kodu

TBT-6950PD

Üretici parça kodu

TBT-6950PD

Hub / dock türü

Docking Station

Ana cihaz bağlantısı

Port: 1x Thunderbolt™ 4 or USB4 | Placement: Side | Version and Link Rate: Thunderbolt™ 4 (40Gbps) | Features: 4x PCIe 3.0 Lanes or USB Power Delivery or Alternate Mode Video

USB bağlantıları

Port: 2x USB-A | Placement: Front | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W | Port: 3x Thunderbolt™ 4 or Thunderbolt™ 3 or USB-C | Placement: Rear | Version and Link Rate: Thunderbolt™ 4 (40Gbps) | Voltage: 5V | Amperage: 3000mA | Wattage: 15W

Görüntü çıkışları

Port: 2x HDMI 4K (Output) | Placement: Rear | Specification: HDMI 2.0 | Max Resolution and Refresh Rate: 3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 2560x1080 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz | HDCP: Not Supported | Chipset: DL-6950 DisplayLink | Port: 3x Thunderbolt™ 4 (Output) | Placement: Rear | Specification: DisplayPort 1.4 | Max Resolution and Refresh Rate: 3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 2560x1080 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz | HDCP: Supported

Görüntü kipleri ve bağlantı koşulları

Host Stream Specification: DisplayPort 1.4 | Host Port Type: Thunderbolt™ 4 or USB4 | Number of Displays Used: 1 or 2 | Max Resolution at Display Count: 3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 2560x1080 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz

Ses bağlantıları

Port: Headset Jack Bi-Directional | Placement: Front | Connection: 3.5mm (TRRS) | Max Bit Depth and Sample Rate: 16-bit 48KHz | Signal Output: Analog | Channels: 2 | Chipset: DL-6950 DisplayLink

Ethernet bağlantıları

Port: DisplayLink Gigabit Ethernet | Placement: Rear | Version and Link Rate: 1000BASE-T | Chipset: DL-6950 DisplayLink

Kart okuyucu

Media Interface: SD or SDHC or SDXC or MMC | Bus Interface: Ultra-High Speed II (UHS-II) | Bus Speed: 312 MB/s | Chipset: Genesys Logic GL3232S

Kutu içeriği

Item and Quantity: 1x Plugable TBT-6950PD Docking Station | Item and Quantity: 1x 1.0m 40 Gbps Thunderbolt 4 Cable | Item and Quantity: 1x Quick Start Guide | Item and Quantity: 1x Power supply | Item and Quantity: 1x Power cable

Verilen kablolar ve uzunlukları

Port Type (Side 1): Male Thunderbolt™ 4 or USB4 | Cable Specification: Thunderbolt™ 4 (40Gbps) | Port Type (Side 2): Thunderbolt™ 4 or USB4 | Cable Length: 1.0m/3.28ft | External Power for Cable: No

LED göstergeleri

LED Number: 1 | Shape: Dot | Color: White | Status: Solid | Definition: Powered on, active host connection

Boyutlar

1.7 x 21 x 9.5 centimeters 0.7 x 8.3 x 3.7 inches

Ağırlık

470 g

Ana cihaza güç aktarımı ve koşulları

Port: Thunderbolt™ 4 to Host | Placement: Side | Power Host / Device: Host | Connection Type: USB-C Power Delivery | Voltage: 20.0V | Amperage: 4.8A | Wattage: 96.0W

Dock güç girişi

Port: Power Supply | Placement: Rear | Power Host / Device: Device | Connection Type: Region-specific Power Adapter | AC Inlet: IEC C5/C6 | Notes: UL 60950-1 Certified | Voltage: 21.0V | Amperage: 8.58A | Wattage: 180.0W

Üreticinin ayrıntılı teknik bilgileri

In The Box / Item and Quantity: 1x Plugable TBT-6950PD Docking Station, In The Box / Item and Quantity: 1x 1.0m 40 Gbps Thunderbolt 4 Cable, In The Box / Item and Quantity: 1x Quick Start Guide, In The Box / Item and Quantity: 1x Power supply, In The Box / Item and Quantity: 1x Power cable, Included Cables / Port Type (Side 1): Male Thunderbolt™ 4 or USB4 | Cable Specification: Thunderbolt™ 4 (40Gbps) | Port Type (Side 2): Thunderbolt™ 4 or USB4 | Cable Length: 1.0m/3.28ft | External Power for Cable: No, LEDs / LED Number: 1 | Shape: Dot | Color: White | Status: Solid | Definition: Powered on, active host connection, Video / Port: 2x HDMI 4K (Output) | Placement: Rear | Specification: HDMI 2.0 | Max Resolution and Refresh Rate: 3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 2560x1080 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz | HDCP: Not Supported | Chipset: DL-6950 DisplayLink, Video / Port: 3x Thunderbolt™ 4 (Output) | Placement: Rear | Specification: DisplayPort 1.4 | Max Resolution and Refresh Rate: 3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 2560x1080 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz | HDCP: Supported, Video Output Modes / Host Stream Specification: DisplayPort 1.4 | Host Port Type: Thunderbolt™ 4 or USB4 | Number of Displays Used: 1 or 2 | Max Resolution at Display Count: 3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 2560x1080 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz, Audio / Port: Headset Jack Bi-Directional | Placement: Front | Connection: 3.5mm (TRRS) | Max Bit Depth and Sample Rate: 16-bit 48KHz | Signal Output: Analog | Channels: 2 | Chipset: DL-6950 DisplayLink, Power / Port: Power Supply | Placement: Rear | Power Host / Device: Device | Connection Type: Region-specific Power Adapter | AC Inlet: IEC C5/C6 | Notes: UL 60950-1 Certified | Voltage: 21.0V | Amperage: 8.58A | Wattage: 180.0W, Power / Port: Thunderbolt™ 4 to Host | Placement: Side | Power Host / Device: Host | Connection Type: USB-C Power Delivery | Voltage: 20.0V | Amperage: 4.8A | Wattage: 96.0W, USB To Devices / Port: 2x USB-A | Placement: Front | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W, USB To Devices / Port: 3x Thunderbolt™ 4 or Thunderbolt™ 3 or USB-C | Placement: Rear | Version and Link Rate: Thunderbolt™ 4 (40Gbps) | Voltage: 5V | Amperage: 3000mA | Wattage: 15W, Connection To Host / Port: 1x Thunderbolt™ 4 or USB4 | Placement: Side | Version and Link Rate: Thunderbolt™ 4 (40Gbps) | Features: 4x PCIe 3.0 Lanes or USB Power Delivery or Alternate Mode Video, Wired Network / Port: DisplayLink Gigabit Ethernet | Placement: Rear | Version and Link Rate: 1000BASE-T | Chipset: DL-6950 DisplayLink, Physical Stats / Item: TBT-6950PD Docking Station | Size (H x W x D) or Length: 1.7 x 21 x 9.5 centimeters 0.7 x 8.3 x 3.7 inches | Weight: 470 grams 16.6 ounces | SKU or Part Number: TBT-6950PD, Card Reader / Media Interface: SD or SDHC or SDXC or MMC | Bus Interface: Ultra-High Speed II (UHS-II) | Bus Speed: 312 MB/s | Chipset: Genesys Logic GL3232S
