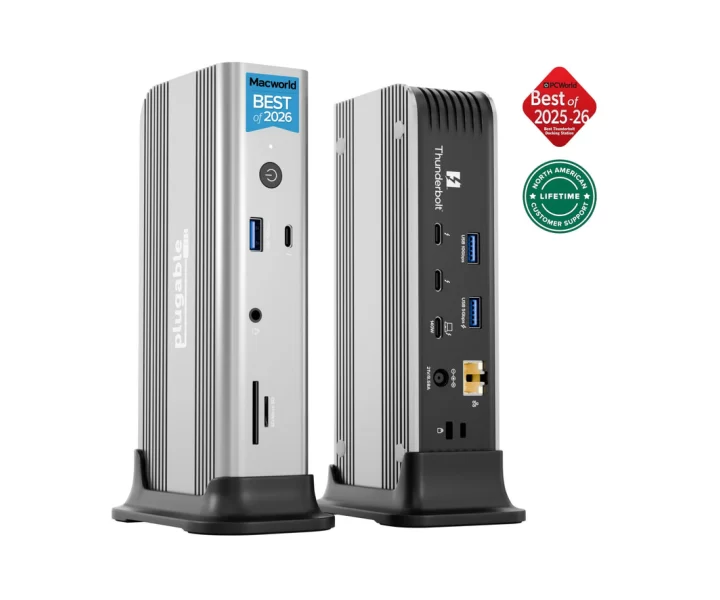

Plugable Thunderbolt 5 Dock with 3x Thunderbolt 5 Ports, 140W Laptop Charging özellikleri ve fiyatları

Plugable Thunderbolt 5 Dock with 3x Thunderbolt 5 Ports, 140W Laptop Charging teknik özellikleri

Model kodu

TBT-UDT3

Üretici parça kodu

TBT-UDT3

Hub / dock türü

Dock

Ana cihaz bağlantısı

Port: 1x Thunderbolt™ 5 | Placement: Rear | Version and Link Rate: Thunderbolt™ 5 (80Gbps) | Features: USB Power Delivery

USB bağlantıları

Port: 1x USB-A | Placement: Front | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W | Port: 1x USB-A | Placement: Rear | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W | Port: 1x USB-A | Placement: Rear | Version and Link Rate: USB 3.2 Gen 1 (5Gbps) | Features: Battery Charging 1.2 | Voltage: 5V | Amperage: 1500mA | Wattage: 7.5W | Port: 2x Thunderbolt™ 5 | Placement: Rear | Version and Link Rate: Thunderbolt™ 5 (80Gbps) | Voltage: 5V | Amperage: 3000mA | Wattage: 15W | Port: 1x Thunderbolt™ 5 | Placement: Front | Version and Link Rate: Thunderbolt™ 5 (80Gbps) | Voltage: 5V | Amperage: 3000mA | Wattage: 15W

Görüntü çıkışları

Port: 2x Thunderbolt™ 5 (Output) | Placement: Rear | Specification: DisplayPort 2.1 | Max Resolution and Refresh Rate: 3840x2160 @ 144Hz 3840x1600 @ 144Hz 3440x1440 @ 144Hz 2560x1440 @ 144Hz 1920x1080 @ 240Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 7680x4320 @ 60Hz | HDCP: Host Dependent | Chipset: JHL9580 Intel | Port: 1x Thunderbolt™ 5 (Output) | Placement: Front | Specification: DisplayPort 2.1 | Max Resolution and Refresh Rate: 3840x2160 @ 144Hz 3840x1600 @ 144Hz 3440x1440 @ 144Hz 2560x1440 @ 144Hz 1920x1080 @ 240Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 7680x4320 @ 60Hz | HDCP: Host Dependent | Chipset: JHL9580 Intel

Görüntü kipleri ve bağlantı koşulları

Host Stream Specification: DisplayPort 1.4 HBR3, DSC 1.2 | Host Port Type: Thunderbolt™ 5 | Number of Displays Used: 1, 2, or 3 | Max Resolution at Display Count: 5120x2880 @ 60Hz 4096x2160 @ 60Hz 3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 7680x4320 @ 60Hz, Host Stream Specification: DisplayPort 1.4 HBR3, DSC 1.2 | Host Port Type: Thunderbolt™ 4 | Number of Displays Used: 1 or 2 | Max Resolution at Display Count: 3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 2560x1080 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz

Ses bağlantıları

Port: Headset Jack Bi-Directional | Placement: Front | Connection: 3.5mm (TRRS) | Max Bit Depth and Sample Rate: 16-bit 48KHz | Signal Output: Analog | Channels: 2 | Chipset: ALC4030U Realtek

Ethernet bağlantıları

Port: 2.5 Gigabit Ethernet | Placement: Rear | Version and Link Rate: 2.5GBASE-T | Chipset: RTL8156B Realtek

Kart okuyucu

Media Interface: SD or SDHC or SDXC or MMC | Bus Interface: Ultra-High Speed II (UHS-II) | Bus Speed: 312 MB/s | Chipset: Genesys Logic GL3231S | Media Interface: Micro SD | Bus Interface: Ultra-High Speed II (UHS-II) | Bus Speed: 312 MB/s | Chipset: Genesys Logic GL3231S

Kutu içeriği

Item and Quantity: 1x Plugable TBT-UDT3 Docking Station | Item and Quantity: 1x Vertical stand | Item and Quantity: 1x 1.0m 80 Gbps Thunderbolt 5 Cable | Item and Quantity: 1x Quick Start Guide | Item and Quantity: 1x Power supply | Item and Quantity: 1x Power cable

Verilen kablolar ve uzunlukları

Port Type (Side 1): Male Thunderbolt™ 5 | Cable Specification: Thunderbolt™ 5 (80Gbps) | Port Type (Side 2): Thunderbolt™ 5 | Cable Length: 1.0m/3.28ft | External Power for Cable: No

LED göstergeleri

LED Number: 1 | Shape: Dot | Color: White | Status: Solid | Definition: Powered on

Boyutlar

17.6 x 4.15 x 7.75 centimeters 6.9 x 1.6 x 3.1 inches

Ağırlık

692 g

Ana cihaza güç aktarımı ve koşulları

Port: Thunderbolt™ 5 to Host | Placement: Rear | Power Host / Device: Host | Connection Type: USB-C Power Delivery 3.1 | Voltage: 28.0V | Amperage: 5.0A | Wattage: 140.0W

Dock güç girişi

Port: Power Supply | Placement: Rear | Power Host / Device: Device | Connection Type: Region-specific Power Adapter | AC Inlet: IEC C5/C6 | Notes: UL 60950-1 Certified | Voltage: 21.0V | Amperage: 8.58A | Wattage: 180.0W

Üreticinin ayrıntılı teknik bilgileri

In The Box / Item and Quantity: 1x Plugable TBT-UDT3 Docking Station, In The Box / Item and Quantity: 1x Vertical stand, In The Box / Item and Quantity: 1x 1.0m 80 Gbps Thunderbolt 5 Cable, In The Box / Item and Quantity: 1x Quick Start Guide, In The Box / Item and Quantity: 1x Power supply, In The Box / Item and Quantity: 1x Power cable, Included Cables / Port Type (Side 1): Male Thunderbolt™ 5 | Cable Specification: Thunderbolt™ 5 (80Gbps) | Port Type (Side 2): Thunderbolt™ 5 | Cable Length: 1.0m/3.28ft | External Power for Cable: No, LEDs / LED Number: 1 | Shape: Dot | Color: White | Status: Solid | Definition: Powered on, Video / Port: 2x Thunderbolt™ 5 (Output) | Placement: Rear | Specification: DisplayPort 2.1 | Max Resolution and Refresh Rate: 3840x2160 @ 144Hz 3840x1600 @ 144Hz 3440x1440 @ 144Hz 2560x1440 @ 144Hz 1920x1080 @ 240Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 7680x4320 @ 60Hz | HDCP: Host Dependent | Chipset: JHL9580 Intel, Video / Port: 1x Thunderbolt™ 5 (Output) | Placement: Front | Specification: DisplayPort 2.1 | Max Resolution and Refresh Rate: 3840x2160 @ 144Hz 3840x1600 @ 144Hz 3440x1440 @ 144Hz 2560x1440 @ 144Hz 1920x1080 @ 240Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 7680x4320 @ 60Hz | HDCP: Host Dependent | Chipset: JHL9580 Intel, Video Output Modes / Host Stream Specification: DisplayPort 1.4 HBR3, DSC 1.2 | Host Port Type: Thunderbolt™ 5 | Number of Displays Used: 1, 2, or 3 | Max Resolution at Display Count: 5120x2880 @ 60Hz 4096x2160 @ 60Hz 3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 7680x4320 @ 60Hz, Video Output Modes / Host Stream Specification: DisplayPort 1.4 HBR3, DSC 1.2 | Host Port Type: Thunderbolt™ 4 | Number of Displays Used: 1 or 2 | Max Resolution at Display Count: 3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 2560x1080 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz, Audio / Port: Headset Jack Bi-Directional | Placement: Front | Connection: 3.5mm (TRRS) | Max Bit Depth and Sample Rate: 16-bit 48KHz | Signal Output: Analog | Channels: 2 | Chipset: ALC4030U Realtek, Power / Port: Power Supply | Placement: Rear | Power Host / Device: Device | Connection Type: Region-specific Power Adapter | AC Inlet: IEC C5/C6 | Notes: UL 60950-1 Certified | Voltage: 21.0V | Amperage: 8.58A | Wattage: 180.0W, Power / Port: Thunderbolt™ 5 to Host | Placement: Rear | Power Host / Device: Host | Connection Type: USB-C Power Delivery 3.1 | Voltage: 28.0V | Amperage: 5.0A | Wattage: 140.0W, USB To Devices / Port: 1x USB-A | Placement: Front | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W, USB To Devices / Port: 1x USB-A | Placement: Rear | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W, USB To Devices / Port: 1x USB-A | Placement: Rear | Version and Link Rate: USB 3.2 Gen 1 (5Gbps) | Features: Battery Charging 1.2 | Voltage: 5V | Amperage: 1500mA | Wattage: 7.5W, USB To Devices / Port: 2x Thunderbolt™ 5 | Placement: Rear | Version and Link Rate: Thunderbolt™ 5 (80Gbps) | Voltage: 5V | Amperage: 3000mA | Wattage: 15W, USB To Devices / Port: 1x Thunderbolt™ 5 | Placement: Front | Version and Link Rate: Thunderbolt™ 5 (80Gbps) | Voltage: 5V | Amperage: 3000mA | Wattage: 15W, Connection To Host / Port: 1x Thunderbolt™ 5 | Placement: Rear | Version and Link Rate: Thunderbolt™ 5 (80Gbps) | Features: USB Power Delivery, Wired Network / Port: 2.5 Gigabit Ethernet | Placement: Rear | Version and Link Rate: 2.5GBASE-T | Chipset: RTL8156B Realtek, Physical Stats / Item: TBT-UDT3 Docking Station | Size (H x W x D) or Length: 17.6 x 4.15 x 7.75 centimeters 6.9 x 1.6 x 3.1 inches | Weight: 692 grams 24.4 ounces | SKU or Part Number: TBT-UDT3, Card Reader / Media Interface: SD or SDHC or SDXC or MMC | Bus Interface: Ultra-High Speed II (UHS-II) | Bus Speed: 312 MB/s | Chipset: Genesys Logic GL3231S, Card Reader / Media Interface: Micro SD | Bus Interface: Ultra-High Speed II (UHS-II) | Bus Speed: 312 MB/s | Chipset: Genesys Logic GL3231S
