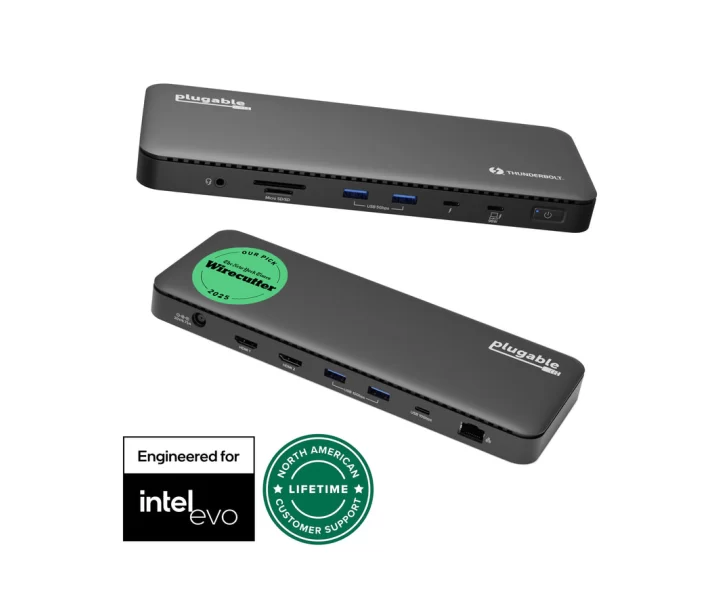

Plugable Thunderbolt 4 Dock for 4K Dual Monitors or Single 8K, 100W Laptop Charging özellikleri ve fiyatları

Plugable Thunderbolt 4 Dock for 4K Dual Monitors or Single 8K, 100W Laptop Charging teknik özellikleri

Model kodu

TBT4-UD5

Üretici parça kodu

TBT4-UD5

Hub / dock türü

Dock

Ana cihaz bağlantısı

Port: 1x Thunderbolt™ 4 or Thunderbolt™ 3 or USB-C | Placement: Front | Version and Link Rate: Thunderbolt™ 4 (40Gbps) | Features: 4x PCIe 3.0 Lanes or USB Power Delivery or Alternate Mode Video

USB bağlantıları

Port: 2x USB-A | Placement: Front | Version and Link Rate: USB 3.0 (5Gbps) | Voltage: 5V | Amperage: 1100mA | Wattage: 5.5W | Port: 2x USB-A | Placement: Rear | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Voltage: 5V | Amperage: 1100mA | Wattage: 5.5W | Port: 1x USB-C | Placement: Rear | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Voltage: 5V | Amperage: 1500mA | Wattage: 7.5W | Port: 1x Thunderbolt™ 4 or Thunderbolt™ 3 or USB-C | Placement: Front | Version and Link Rate: Thunderbolt™ 4 (40Gbps) | Features: 4x PCIe 3.0 Lanes or USB Power Delivery or Alternate Mode Video | Voltage: 5V | Amperage: 3000mA | Wattage: 15W

Görüntü çıkışları

Port: 2x HDMI 4K (Output) | Placement: Rear | Specification: HDMI 2.0 | Max Resolution and Refresh Rate: 3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 2560x1080 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 4096x2160 @ 60Hz | HDCP: Supported | Port: 1x Thunderbolt™ 4 (Output) | Placement: Front | Specification: DisplayPort 1.4 | Max Resolution and Refresh Rate: 4096x2160 @ 60Hz 3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 7680x4320 @ 30Hz | HDCP: Supported

Görüntü kipleri ve bağlantı koşulları

Host Stream Specification: DisplayPort 1.4 | Host Port Type: Thunderbolt™ 4 | Number of Displays Used: 1 or 2 | Max Resolution at Display Count: 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz, Host Stream Specification: DisplayPort 1.2 | Host Port Type: Thunderbolt™ 3 (Two Display Streams) | Number of Displays Used: 1 or 2 | Max Resolution at Display Count: 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz, Host Stream Specification: DisplayPort 1.2 | Host Port Type: Thunderbolt™ 3 (Single Display Stream) | Number of Displays Used: 1 | Max Resolution at Display Count: 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz, Host Stream Specification: DisplayPort 1.2 | Host Port Type: USB-C (with Alt Mode) | Number of Displays Used: 1 | Max Resolution at Display Count: 3840x1600 @ 30Hz 3440x1440 @ 30Hz 2560x1440 @ 60Hz 1920x1200 @60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 30Hz

Ses bağlantıları

Port: Headset Jack Bi-Directional | Placement: Front | Connection: 3.5mm (TRRS) | Max Bit Depth and Sample Rate: 16-bit 48KHz | Signal Output: Analog | Channels: 2 | Chipset: ALC4030U Realtek

Ethernet bağlantıları

Port: Gigabit Ethernet | Placement: Rear | Version and Link Rate: 1000BASE-T | Features: Wake-on-LAN (WoL) or Energy-Efficient Ethernet (EEE) or 9K Jumbo Frames | Chipset: RTL8153B Realtek

Kart okuyucu

Media Interface: SD or SDHC or SDXC or MMC | Bus Interface: Ultra-High Speed II (UHS-II) | Bus Speed: 312 MB/s | Media Interface: Micro SD | Bus Interface: Ultra-High Speed II (UHS-II) | Bus Speed: 312 MB/s

Kutu içeriği

Item and Quantity: 1x Plugable TBT4-UD5 Docking Station | Item and Quantity: 1x 1.0m 40Gbps 240W Thunderbolt 4 Cable | Item and Quantity: 1x Quick Start Guide | Item and Quantity: 1x Power supply | Item and Quantity: 1x Power cable

Verilen kablolar ve uzunlukları

Port Type (Side 1): Male Thunderbolt™ 4 or USB4 | Cable Specification: Thunderbolt™ 4 (40Gbps) | Port Type (Side 2): Thunderbolt™ 4 or USB4 | Cable Length: 1.0m/3.28ft | External Power for Cable: No

LED göstergeleri

LED Number: 1 | Shape: Dot | Color: Orange | Status: Solid | Definition: Powered on | LED Number: 1 | Shape: Dot | Color: Blue | Status: Solid | Definition: Powered on, active host connection

Boyutlar

2.3 x 22.5 x 8.5 centimeters 0.9 x 8.9 x 3.3 inches

Ağırlık

365 g

Ana cihaza güç aktarımı ve koşulları

Port: Thunderbolt™ 4 to Host | Placement: Front | Power Host / Device: Host | Connection Type: USB-C Power Delivery | Voltage: 20.0V | Amperage: 4.8A | Wattage: 96.0W

Dock güç girişi

Port: Power Supply | Placement: Rear | Power Host / Device: Device | Connection Type: Region-specific Power Adapter | AC Inlet: IEC C13/C14 | Notes: UL 60950-1 Certified | Voltage: 21.0V | Amperage: 6.4A | Wattage: 134.0W

Üreticinin ayrıntılı teknik bilgileri

In The Box / Item and Quantity: 1x Plugable TBT4-UD5 Docking Station, In The Box / Item and Quantity: 1x 1.0m 40Gbps 240W Thunderbolt 4 Cable, In The Box / Item and Quantity: 1x Quick Start Guide, In The Box / Item and Quantity: 1x Power supply, In The Box / Item and Quantity: 1x Power cable, Included Cables / Port Type (Side 1): Male Thunderbolt™ 4 or USB4 | Cable Specification: Thunderbolt™ 4 (40Gbps) | Port Type (Side 2): Thunderbolt™ 4 or USB4 | Cable Length: 1.0m/3.28ft | External Power for Cable: No, LEDs / LED Number: 1 | Shape: Dot | Color: Orange | Status: Solid | Definition: Powered on, LEDs / LED Number: 1 | Shape: Dot | Color: Blue | Status: Solid | Definition: Powered on, active host connection, Video / Port: 2x HDMI 4K (Output) | Placement: Rear | Specification: HDMI 2.0 | Max Resolution and Refresh Rate: 3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 2560x1080 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 4096x2160 @ 60Hz | HDCP: Supported, Video / Port: 1x Thunderbolt™ 4 (Output) | Placement: Front | Specification: DisplayPort 1.4 | Max Resolution and Refresh Rate: 4096x2160 @ 60Hz 3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 7680x4320 @ 30Hz | HDCP: Supported, Video Output Modes / Host Stream Specification: DisplayPort 1.4 | Host Port Type: Thunderbolt™ 4 | Number of Displays Used: 1 or 2 | Max Resolution at Display Count: 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz, Video Output Modes / Host Stream Specification: DisplayPort 1.2 | Host Port Type: Thunderbolt™ 3 (Two Display Streams) | Number of Displays Used: 1 or 2 | Max Resolution at Display Count: 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz, Video Output Modes / Host Stream Specification: DisplayPort 1.2 | Host Port Type: Thunderbolt™ 3 (Single Display Stream) | Number of Displays Used: 1 | Max Resolution at Display Count: 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz, Video Output Modes / Host Stream Specification: DisplayPort 1.2 | Host Port Type: USB-C (with Alt Mode) | Number of Displays Used: 1 | Max Resolution at Display Count: 3840x1600 @ 30Hz 3440x1440 @ 30Hz 2560x1440 @ 60Hz 1920x1200 @60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 30Hz, Audio / Port: Headset Jack Bi-Directional | Placement: Front | Connection: 3.5mm (TRRS) | Max Bit Depth and Sample Rate: 16-bit 48KHz | Signal Output: Analog | Channels: 2 | Chipset: ALC4030U Realtek, Power / Port: Power Supply | Placement: Rear | Power Host / Device: Device | Connection Type: Region-specific Power Adapter | AC Inlet: IEC C13/C14 | Notes: UL 60950-1 Certified | Voltage: 21.0V | Amperage: 6.4A | Wattage: 134.0W, Power / Port: Thunderbolt™ 4 to Host | Placement: Front | Power Host / Device: Host | Connection Type: USB-C Power Delivery | Voltage: 20.0V | Amperage: 4.8A | Wattage: 96.0W, USB To Devices / Port: 2x USB-A | Placement: Front | Version and Link Rate: USB 3.0 (5Gbps) | Voltage: 5V | Amperage: 1100mA | Wattage: 5.5W, USB To Devices / Port: 2x USB-A | Placement: Rear | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Voltage: 5V | Amperage: 1100mA | Wattage: 5.5W, USB To Devices / Port: 1x USB-C | Placement: Rear | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Voltage: 5V | Amperage: 1500mA | Wattage: 7.5W, USB To Devices / Port: 1x Thunderbolt™ 4 or Thunderbolt™ 3 or USB-C | Placement: Front | Version and Link Rate: Thunderbolt™ 4 (40Gbps) | Features: 4x PCIe 3.0 Lanes or USB Power Delivery or Alternate Mode Video | Voltage: 5V | Amperage: 3000mA | Wattage: 15W, Connection To Host / Port: 1x Thunderbolt™ 4 or Thunderbolt™ 3 or USB-C | Placement: Front | Version and Link Rate: Thunderbolt™ 4 (40Gbps) | Features: 4x PCIe 3.0 Lanes or USB Power Delivery or Alternate Mode Video, Wired Network / Port: Gigabit Ethernet | Placement: Rear | Version and Link Rate: 1000BASE-T | Features: Wake-on-LAN (WoL) or Energy-Efficient Ethernet (EEE) or 9K Jumbo Frames | Chipset: RTL8153B Realtek, Physical Stats / Item: TBT4-UD5 Docking Station | Size (H x W x D) or Length: 2.3 x 22.5 x 8.5 centimeters 0.9 x 8.9 x 3.3 inches | Weight: 365 grams 12.9 ounces | SKU or Part Number: TBT4-UD5, Card Reader / Media Interface: SD or SDHC or SDXC or MMC | Bus Interface: Ultra-High Speed II (UHS-II) | Bus Speed: 312 MB/s, Card Reader / Media Interface: Micro SD | Bus Interface: Ultra-High Speed II (UHS-II) | Bus Speed: 312 MB/s

Güncel mağaza teklifleri

Son 48 saat içinde doğrulanmış, stokta mağaza teklifi yok. Eski fiyatlar güncel teklif olarak gösterilmez.
