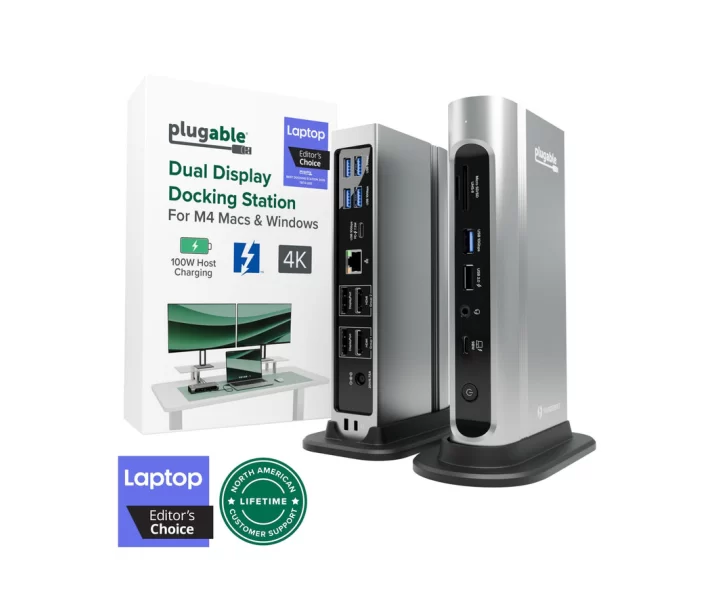

Plugable Thunderbolt™ 4 16-in-1 Docking Station for MacBook Air/Pro özellikleri ve fiyatları

Plugable Thunderbolt™ 4 16-in-1 Docking Station for MacBook Air/Pro teknik özellikleri

Model kodu

TBT4-UDZ

Üretici parça kodu

TBT4-UDZ

Hub / dock türü

Docking Station

Ana cihaz bağlantısı

Port: 1x Thunderbolt™ 4 or Thunderbolt™ 3 or USB-C | Placement: Front | Version and Link Rate: Thunderbolt™ 4 (40Gbps) | Features: 4x PCIe 3.0 Lanes or USB Power Delivery or Alternate Mode Video

USB bağlantıları

Port: 1x USB-A | Placement: Front | Version and Link Rate: USB 2.0 (480Mbps) | Features: Battery Charging 1.2 | Voltage: 5V | Amperage: 1500mA | Wattage: 7.5W | Port: 1x USB-A | Placement: Front | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W | Port: 1x USB-C | Placement: Rear | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Features: USB Power Delivery | Voltage: 5V | Amperage: 1500mA | Wattage: 7.5W | Port: 2x USB-A | Placement: Rear | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W | Port: 2x USB-A | Placement: Rear | Version and Link Rate: USB 3.0 (5Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W

Görüntü çıkışları

Port: 2x HDMI 4K (Output) | Placement: Rear | Specification: HDMI 2.0 | Max Resolution and Refresh Rate: 4096x2160 @ 60Hz 3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 4096x2160 @ 60Hz | HDCP: Supported | Chipset: RTD2188-VA-CG Realtek | Port: 2x DisplayPort (Output) | Placement: Rear | Specification: DisplayPort 1.2 | Max Resolution and Refresh Rate: 4096x2160 @ 60Hz 3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 4096x2160 @ 60Hz | HDCP: Supported | Chipset: RTD2188-VA-CG Realtek

Görüntü kipleri ve bağlantı koşulları

Host Stream Specification: DisplayPort 1.4 MST, DSC 1.2, HBR3 | Host Port Type: Thunderbolt™ 4 | Number of Displays Used: 1, 2, 3, or 4 | Max Resolution at Display Count: 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz, Host Stream Specification: DisplayPort 1.2 | Host Port Type: Thunderbolt™ 3 (Two Display Streams) | Number of Displays Used: 1 or 2 | Max Resolution at Display Count: 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz, Host Stream Specification: DisplayPort 1.2 | Host Port Type: Thunderbolt™ 3 (Single Display Stream) | Number of Displays Used: 1 | Max Resolution at Display Count: 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz, Host Stream Specification: DisplayPort 1.4 MST, DSC 1.2, HBR3 | Host Port Type: USB-C (with Alt Mode and MFDP) | Number of Displays Used: 1 or 2 | Max Resolution at Display Count: 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz, Host Stream Specification: DisplayPort 1.4 MST, DSC 1.2, HBR3 | Host Port Type: USB-C (with Alt Mode and MFDP) | Number of Displays Used: 1 or 2 | Max Resolution at Display Count: 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz, Host Stream Specification: DisplayPort 1.2 MST, HBR2 | Host Port Type: USB-C (with Alt Mode and MFDP) | Number of Displays Used: 1 or 2 | Max Resolution at Display Count: 1920x1080 @ 50Hz 1920x1080 @ 30Hz 1920x1080 @ 25Hz 1920x1080 @ 24Hz 1280x720 @ 60Hz 1280x720 @ 50Hz 720x480 @ 60Hz 720x576 @ 50Hz 1920x1080 @ 60Hz, Host Stream Specification: DisplayPort 1.2 HBR2 | Host Port Type: USB-C (with Alt Mode and MFDP) | Number of Displays Used: 1 | Max Resolution at Display Count: 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz, Host Stream Specification: DisplayPort 1.2 HBR | Host Port Type: USB-C (with Alt Mode and MFDP) | Number of Displays Used: 1 | Max Resolution at Display Count: 3840x1600 @ 30Hz 3440x1440 @ 30Hz 2560x1440 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 30Hz

Ses bağlantıları

Port: HDMI 4K Output | Placement: Rear | Connection: DisplayPort | Max Bit Depth and Sample Rate: Host Dependent | Signal Output: Digital | Channels: Host Dependent | Port: DisplayPort Output | Placement: Rear | Connection: DisplayPort | Max Bit Depth and Sample Rate: Host Dependent | Signal Output: Digital | Channels: Host Dependent | Port: Headset Jack Bi-Directional | Placement: Front | Connection: 3.5mm (TRRS) | Max Bit Depth and Sample Rate: 16-bit 48KHz | Signal Output: Analog | Channels: 2 | Chipset: ALC4030U Realtek

Ethernet bağlantıları

Port: 2.5 Gigabit Ethernet | Placement: Rear | Version and Link Rate: 2.5GBASE-T | Features: Wake-on-LAN (WoL) or Energy-Efficient Ethernet (EEE) or 9K Jumbo Frames | Chipset: RTL8156B Realtek

Kart okuyucu

Media Interface: Micro SD | Bus Interface: Ultra-High Speed II (UHS-II) | Bus Speed: 312 MB/s | Chipset: Genesys Logic GL3231S | Media Interface: SD or SDHC or SDXC or MMC | Bus Interface: Ultra-High Speed II (UHS-II) | Bus Speed: 312 MB/s | Chipset: Genesys Logic GL3231S

Kutu içeriği

Item and Quantity: 1x Plugable TBT4-UDZ Thunderbolt 4 and USB4 Quad Display Dock with 98W Host Charging | Item and Quantity: 1x Quick Start Guide | Item and Quantity: 1x Power supply | Item and Quantity: 1x Power cable | Item and Quantity: 1x Vertical stand | Item and Quantity: 1x 1.0m 40 Gbps Thunderbolt 4 Cable

Verilen kablolar ve uzunlukları

Port Type (Side 1): Male Thunderbolt™ 4 or Thunderbolt™ 3 or USB-C | Cable Specification: Thunderbolt™ 4 (40Gbps) | Port Type (Side 2): Thunderbolt™ 4 or Thunderbolt™ 3 or USB-C | Cable Length: 1.0m/3.28ft | External Power for Cable: No

LED göstergeleri

LED Number: 1 | Shape: Dot | Color: White | Status: Solid | Definition: Powered on | LED Number: 1 | Shape: Dot | Color: Green | Status: Solid | Definition: Powered on, active host connection

Boyutlar

3.5 x 10.5 x 19.5 centimeters 1.4 x 4.1 x 7.7 inches

Ağırlık

646 g

Ana cihaza güç aktarımı ve koşulları

Port: Thunderbolt™ 4 to Host | Placement: Front | Power Host / Device: Host | Connection Type: USB-C Power Delivery | Voltage: 20.0V | Amperage: 4.9A | Wattage: 98.0W

Dock güç girişi

Port: Power Supply | Placement: Rear | Power Host / Device: Device | Connection Type: Region-specific Power Adapter | AC Inlet: IEC C5/C6 | Notes: UL 60950-1 Certified | Voltage: 20.0V | Amperage: 6.75A | Wattage: 135.0W

Üreticinin ayrıntılı teknik bilgileri

In The Box / Item and Quantity: 1x Plugable TBT4-UDZ Thunderbolt 4 and USB4 Quad Display Dock with 98W Host Charging, In The Box / Item and Quantity: 1x Quick Start Guide, In The Box / Item and Quantity: 1x Power supply, In The Box / Item and Quantity: 1x Power cable, In The Box / Item and Quantity: 1x Vertical stand, In The Box / Item and Quantity: 1x 1.0m 40 Gbps Thunderbolt 4 Cable, Included Cables / Port Type (Side 1): Male Thunderbolt™ 4 or Thunderbolt™ 3 or USB-C | Cable Specification: Thunderbolt™ 4 (40Gbps) | Port Type (Side 2): Thunderbolt™ 4 or Thunderbolt™ 3 or USB-C | Cable Length: 1.0m/3.28ft | External Power for Cable: No, LEDs / LED Number: 1 | Shape: Dot | Color: White | Status: Solid | Definition: Powered on, LEDs / LED Number: 1 | Shape: Dot | Color: Green | Status: Solid | Definition: Powered on, active host connection, Video / Port: 2x HDMI 4K (Output) | Placement: Rear | Specification: HDMI 2.0 | Max Resolution and Refresh Rate: 4096x2160 @ 60Hz 3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 4096x2160 @ 60Hz | HDCP: Supported | Chipset: RTD2188-VA-CG Realtek, Video / Port: 2x DisplayPort (Output) | Placement: Rear | Specification: DisplayPort 1.2 | Max Resolution and Refresh Rate: 4096x2160 @ 60Hz 3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 4096x2160 @ 60Hz | HDCP: Supported | Chipset: RTD2188-VA-CG Realtek, Video Output Modes / Host Stream Specification: DisplayPort 1.4 MST, DSC 1.2, HBR3 | Host Port Type: Thunderbolt™ 4 | Number of Displays Used: 1, 2, 3, or 4 | Max Resolution at Display Count: 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz, Video Output Modes / Host Stream Specification: DisplayPort 1.2 | Host Port Type: Thunderbolt™ 3 (Two Display Streams) | Number of Displays Used: 1 or 2 | Max Resolution at Display Count: 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz, Video Output Modes / Host Stream Specification: DisplayPort 1.2 | Host Port Type: Thunderbolt™ 3 (Single Display Stream) | Number of Displays Used: 1 | Max Resolution at Display Count: 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz, Video Output Modes / Host Stream Specification: DisplayPort 1.4 MST, DSC 1.2, HBR3 | Host Port Type: USB-C (with Alt Mode and MFDP) | Number of Displays Used: 1 or 2 | Max Resolution at Display Count: 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz, Video Output Modes / Host Stream Specification: DisplayPort 1.4 MST, DSC 1.2, HBR3 | Host Port Type: USB-C (with Alt Mode and MFDP) | Number of Displays Used: 1 or 2 | Max Resolution at Display Count: 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz, Video Output Modes / Host Stream Specification: DisplayPort 1.2 MST, HBR2 | Host Port Type: USB-C (with Alt Mode and MFDP) | Number of Displays Used: 1 or 2 | Max Resolution at Display Count: 1920x1080 @ 50Hz 1920x1080 @ 30Hz 1920x1080 @ 25Hz 1920x1080 @ 24Hz 1280x720 @ 60Hz 1280x720 @ 50Hz 720x480 @ 60Hz 720x576 @ 50Hz 1920x1080 @ 60Hz, Video Output Modes / Host Stream Specification: DisplayPort 1.2 HBR2 | Host Port Type: USB-C (with Alt Mode and MFDP) | Number of Displays Used: 1 | Max Resolution at Display Count: 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz, Video Output Modes / Host Stream Specification: DisplayPort 1.2 HBR | Host Port Type: USB-C (with Alt Mode and MFDP) | Number of Displays Used: 1 | Max Resolution at Display Count: 3840x1600 @ 30Hz 3440x1440 @ 30Hz 2560x1440 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 30Hz, Audio / Port: HDMI 4K Output | Placement: Rear | Connection: DisplayPort | Max Bit Depth and Sample Rate: Host Dependent | Signal Output: Digital | Channels: Host Dependent, Audio / Port: DisplayPort Output | Placement: Rear | Connection: DisplayPort | Max Bit Depth and Sample Rate: Host Dependent | Signal Output: Digital | Channels: Host Dependent, Audio / Port: Headset Jack Bi-Directional | Placement: Front | Connection: 3.5mm (TRRS) | Max Bit Depth and Sample Rate: 16-bit 48KHz | Signal Output: Analog | Channels: 2 | Chipset: ALC4030U Realtek, Power / Port: Power Supply | Placement: Rear | Power Host / Device: Device | Connection Type: Region-specific Power Adapter | AC Inlet: IEC C5/C6 | Notes: UL 60950-1 Certified | Voltage: 20.0V | Amperage: 6.75A | Wattage: 135.0W, Power / Port: Thunderbolt™ 4 to Host | Placement: Front | Power Host / Device: Host | Connection Type: USB-C Power Delivery | Voltage: 20.0V | Amperage: 4.9A | Wattage: 98.0W, USB To Devices / Port: 1x USB-A | Placement: Front | Version and Link Rate: USB 2.0 (480Mbps) | Features: Battery Charging 1.2 | Voltage: 5V | Amperage: 1500mA | Wattage: 7.5W, USB To Devices / Port: 1x USB-A | Placement: Front | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W, USB To Devices / Port: 1x USB-C | Placement: Rear | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Features: USB Power Delivery | Voltage: 5V | Amperage: 1500mA | Wattage: 7.5W, USB To Devices / Port: 2x USB-A | Placement: Rear | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W, USB To Devices / Port: 2x USB-A | Placement: Rear | Version and Link Rate: USB 3.0 (5Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W, Connection To Host / Port: 1x Thunderbolt™ 4 or Thunderbolt™ 3 or USB-C | Placement: Front | Version and Link Rate: Thunderbolt™ 4 (40Gbps) | Features: 4x PCIe 3.0 Lanes or USB Power Delivery or Alternate Mode Video, Wired Network / Port: 2.5 Gigabit Ethernet | Placement: Rear | Version and Link Rate: 2.5GBASE-T | Features: Wake-on-LAN (WoL) or Energy-Efficient Ethernet (EEE) or 9K Jumbo Frames | Chipset: RTL8156B Realtek, Physical Stats / Item: TBT4-UDZ Docking Station | Size (H x W x D) or Length: 3.5 x 10.5 x 19.5 centimeters 1.4 x 4.1 x 7.7 inches | Weight: 646 grams 22.8 ounces | SKU or Part Number: TBT4-UDZ, Card Reader / Media Interface: Micro SD | Bus Interface: Ultra-High Speed II (UHS-II) | Bus Speed: 312 MB/s | Chipset: Genesys Logic GL3231S, Card Reader / Media Interface: SD or SDHC or SDXC or MMC | Bus Interface: Ultra-High Speed II (UHS-II) | Bus Speed: 312 MB/s | Chipset: Genesys Logic GL3231S
