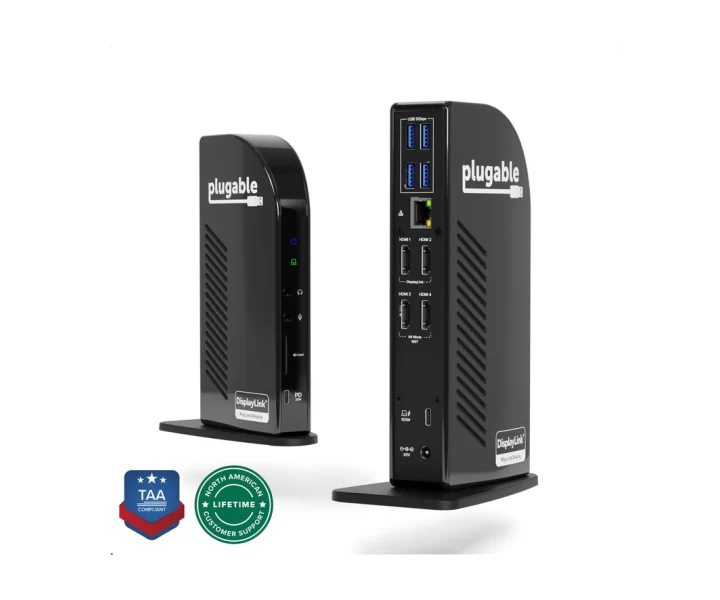

Plugable USB-C Docking Station for 4 Monitor Setup, 96W-TAA Compliant özellikleri ve fiyatları

Plugable USB-C Docking Station for 4 Monitor Setup, 96W-TAA Compliant teknik özellikleri

Model kodu

UD-3900C4

Üretici parça kodu

UD-3900C4

Hub / dock türü

Docking Station

Ana cihaz bağlantısı

Port: 1x USB-C | Placement: Rear | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Features: USB Power Delivery

USB bağlantıları

Port: 1x USB-C | Placement: Front | Version and Link Rate: USB 3.0 (5Gbps) | Features: Battery Charging 1.2 | Voltage: 5V | Amperage: 4000mA | Wattage: 20W | Port: 4x USB-A | Placement: Rear | Version and Link Rate: USB 3.0 (5Gbps) | Voltage: 5V | Amperage: 1500mA | Wattage: 7.5W

Görüntü çıkışları

Port: 2x HDMI (Output) | Placement: Rear | Specification: HDMI 1.3 | Max Resolution and Refresh Rate: 1920x1080 @ 60Hz 1920x1200 @ 60Hz | HDCP: Not Supported | Chipset: DL-3900 DisplayLink | Port: 2x HDMI (Output) | Placement: Rear | Specification: HDMI 2.0 | Max Resolution and Refresh Rate: 1920x1080 @ 60Hz 1920x1080 @ 60Hz | HDCP: Supported

Ses bağlantıları

Port: HDMI Output | Placement: Rear | Connection: DisplayLink HDMI | Signal Output: Digital | Channels: 2 | Chipset: DL-3900 DisplayLink | Port: HDMI Output | Placement: Rear | Connection: HDMI | Signal Output: Digital | Channels: 2 | Chipset: VMM5200 Synaptics | Port: Headphone Jack Output | Placement: Front | Connection: 3.5mm (TRS) | Max Bit Depth and Sample Rate: 16-bit 48KHz | Signal Output: Analog | Channels: 2 | Chipset: DL-3900 DisplayLink | Port: Microphone Jack Input | Placement: Front | Connection: 3.5mm (TRS) | Signal Output: Analog | Channels: 2 | Chipset: DL-3900 DisplayLink

Ethernet bağlantıları

Port: DisplayLink Gigabit Ethernet | Placement: Rear | Version and Link Rate: 1000BASE-T | Chipset: DL-3900 DisplayLink

Kart okuyucu

Media Interface: SD or SDHC or SDXC or MMC | Bus Interface: Ultra-High Speed II (UHS-II) | Bus Speed: 312 MB/s | Chipset: Genesys Logic GL3232S

Kutu içeriği

Item and Quantity: 1x Plugable USB-C Quad HDMI Docking Station | Item and Quantity: 1x Power Adapter | Item and Quantity: 1x USB-C to USB-C Cable | Item and Quantity: 1x Quick Start Guide

Verilen kablolar ve uzunlukları

Port Type (Side 1): Male USB-C | Cable Specification: USB 3.2 Gen 2 (10Gbps) | Port Type (Side 2): USB-C | Cable Length: 1.0m/3.28ft | External Power for Cable: No

LED göstergeleri

LED Number: 1 | Shape: Power Symbol | Color: Blue | Status: Solid | Definition: Powered on | LED Number: 2 | Shape: Laptop Icon | Color: Green | Status: Solid | Definition: Active host connection

Boyutlar

20 x 7.1 x 13.5 centimeters 7.9 x 2.8 x 5.3 inches

Ağırlık

486 g

Ana cihaza güç aktarımı ve koşulları

Port: USB-C to Host | Placement: Rear | Power Host / Device: Host | Connection Type: USB-C Power Delivery | Voltage: 20.0V | Amperage: 5.0A | Wattage: 100.0W

Dock güç girişi

Port: Power Supply | Placement: Rear | Power Host / Device: Device | Connection Type: Region-specific Power Adapter | AC Inlet: IEC C5/C6 | Notes: UL 60950-1 Certified | Voltage: 20.0V | Amperage: 6.75A | Wattage: 135.0W

Üreticinin ayrıntılı teknik bilgileri

In The Box / Item and Quantity: 1x Plugable USB-C Quad HDMI Docking Station, In The Box / Item and Quantity: 1x Power Adapter, In The Box / Item and Quantity: 1x USB-C to USB-C Cable, In The Box / Item and Quantity: 1x Quick Start Guide, Included Cables / Port Type (Side 1): Male USB-C | Cable Specification: USB 3.2 Gen 2 (10Gbps) | Port Type (Side 2): USB-C | Cable Length: 1.0m/3.28ft | External Power for Cable: No, LEDs / LED Number: 1 | Shape: Power Symbol | Color: Blue | Status: Solid | Definition: Powered on, LEDs / LED Number: 2 | Shape: Laptop Icon | Color: Green | Status: Solid | Definition: Active host connection, Video / Port: 2x HDMI (Output) | Placement: Rear | Specification: HDMI 1.3 | Max Resolution and Refresh Rate: 1920x1080 @ 60Hz 1920x1200 @ 60Hz | HDCP: Not Supported | Chipset: DL-3900 DisplayLink, Video / Port: 2x HDMI (Output) | Placement: Rear | Specification: HDMI 2.0 | Max Resolution and Refresh Rate: 1920x1080 @ 60Hz 1920x1080 @ 60Hz | HDCP: Supported, Audio / Port: HDMI Output | Placement: Rear | Connection: DisplayLink HDMI | Signal Output: Digital | Channels: 2 | Chipset: DL-3900 DisplayLink, Audio / Port: HDMI Output | Placement: Rear | Connection: HDMI | Signal Output: Digital | Channels: 2 | Chipset: VMM5200 Synaptics, Audio / Port: Headphone Jack Output | Placement: Front | Connection: 3.5mm (TRS) | Max Bit Depth and Sample Rate: 16-bit 48KHz | Signal Output: Analog | Channels: 2 | Chipset: DL-3900 DisplayLink, Audio / Port: Microphone Jack Input | Placement: Front | Connection: 3.5mm (TRS) | Signal Output: Analog | Channels: 2 | Chipset: DL-3900 DisplayLink, Power / Port: Power Supply | Placement: Rear | Power Host / Device: Device | Connection Type: Region-specific Power Adapter | AC Inlet: IEC C5/C6 | Notes: UL 60950-1 Certified | Voltage: 20.0V | Amperage: 6.75A | Wattage: 135.0W, Power / Port: USB-C to Host | Placement: Rear | Power Host / Device: Host | Connection Type: USB-C Power Delivery | Voltage: 20.0V | Amperage: 5.0A | Wattage: 100.0W, USB To Devices / Port: 1x USB-C | Placement: Front | Version and Link Rate: USB 3.0 (5Gbps) | Features: Battery Charging 1.2 | Voltage: 5V | Amperage: 4000mA | Wattage: 20W, USB To Devices / Port: 4x USB-A | Placement: Rear | Version and Link Rate: USB 3.0 (5Gbps) | Voltage: 5V | Amperage: 1500mA | Wattage: 7.5W, Connection To Host / Port: 1x USB-C | Placement: Rear | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Features: USB Power Delivery, Wired Network / Port: DisplayLink Gigabit Ethernet | Placement: Rear | Version and Link Rate: 1000BASE-T | Chipset: DL-3900 DisplayLink, Physical Stats / Item: UD-3900C4 Docking Station | Size (H x W x D) or Length: 20 x 7.1 x 13.5 centimeters 7.9 x 2.8 x 5.3 inches | Weight: 486 grams 17.1 ounces | SKU or Part Number: UD-3900C4, Card Reader / Media Interface: SD or SDHC or SDXC or MMC | Bus Interface: Ultra-High Speed II (UHS-II) | Bus Speed: 312 MB/s | Chipset: Genesys Logic GL3232S
