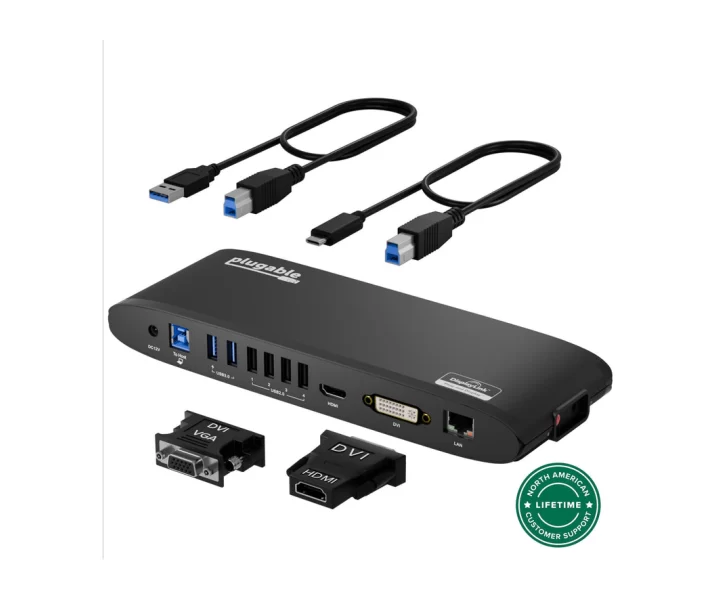

Plugable Universal Dual Monitor Docking Station for Dell, HP, Lenovo, Macbook özellikleri ve fiyatları

Plugable Universal Dual Monitor Docking Station for Dell, HP, Lenovo, Macbook teknik özellikleri

Model kodu

UD-3900H

Üretici parça kodu

UD-3900H

Hub / dock türü

Docking Station

Ana cihaz bağlantısı

Port: 1x USB-A or USB-C | Placement: Rear | Version and Link Rate: USB 3.0 (5Gbps)

USB bağlantıları

Port: 2x USB-A | Placement: Front | Version and Link Rate: USB 3.0 (5Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W | Port: 4x USB-A | Placement: Rear | Version and Link Rate: USB 2.0 (480Mbps) | Voltage: 5V | Amperage: 500mA | Wattage: 2.5W

Görüntü çıkışları

Port: 1x DVI (HDMI or VGA with Bundled Adapters) (Output) | Placement: Rear | Specification: DVI-I (Single Link) | Max Resolution and Refresh Rate: 1920x1200 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 1920x1200 @ 60Hz | HDCP: Not Supported | Chipset: DL-3900 DisplayLink | Port: 1x HDMI (Output) | Placement: Rear | Specification: HDMI 1.3 | Max Resolution and Refresh Rate: 2560x1080 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 2560x1440 @ 50Hz | HDCP: Not Supported | Chipset: DL-3900 DisplayLink

Ses bağlantıları

Port: HDMI Output | Placement: Rear | Connection: HDMI | Signal Output: Digital | Channels: 2 | Chipset: DL-3900 DisplayLink | Port: Headphone Jack Output | Placement: Front | Connection: 3.5mm (TRS) | Signal Output: Analog | Channels: 2 | Chipset: DL-3900 DisplayLink | Port: Microphone Jack Input | Placement: Front | Connection: 3.5mm (TRS) | Signal Output: Analog | Channels: 2 | Chipset: DL-3900 DisplayLink

Ethernet bağlantıları

Port: DisplayLink Gigabit Ethernet | Placement: Rear | Version and Link Rate: 1000BASE-T | Chipset: DL-3900 DisplayLink

Kutu içeriği

Item and Quantity: 1x USB 3.0 Universal Horizontal Docking Station | Item and Quantity: 1x Power Adapter | Item Notes: Region-specific power outlet adapters are included for purchases in the UK, EU and AUS. | Item and Quantity: 1x Passive DVI to HDMI adapter | Item and Quantity: 1x Passive DVI to VGA adapter | Item and Quantity: 1x USB 3.0 A to B Cable | Item and Quantity: 1x USB 3.0 C to B Cable | Item and Quantity: 1x Quick Start Guide

Verilen kablolar ve uzunlukları

Port Type (Side 1): Male USB-A | Cable Specification: USB 3.0 (5Gbps) | Port Type (Side 2): USB-B (3.0) | Cable Length: 0.84m/2.76ft | External Power for Cable: No | Port Type (Side 1): Male USB-C | Cable Specification: USB 3.0 (5Gbps) | Port Type (Side 2): USB-B (3.0) | Cable Length: 0.84m/2.76ft | External Power for Cable: No

LED göstergeleri

LED Number: 1 | Shape: Dot | Color: Blue | Status: Solid | Definition: Powered on

Boyutlar

3 x 24 x 8 centimeters 1.2 x 9.4 x 3.1 inches

Ağırlık

323.2 g

Dock güç girişi

Port: Power Supply | Placement: Rear | Power Host / Device: Device | Connection Type: Region-specific Power Adapter | AC Inlet: Direct AC plug | Notes: UL 60950-1 Certified | Voltage: 12.0V | Amperage: 2.0A | Wattage: 24.0W

Üreticinin ayrıntılı teknik bilgileri

In The Box / Item and Quantity: 1x USB 3.0 Universal Horizontal Docking Station, In The Box / Item and Quantity: 1x Power Adapter | Item Notes: Region-specific power outlet adapters are included for purchases in the UK, EU and AUS., In The Box / Item and Quantity: 1x Passive DVI to HDMI adapter, In The Box / Item and Quantity: 1x Passive DVI to VGA adapter, In The Box / Item and Quantity: 1x USB 3.0 A to B Cable, In The Box / Item and Quantity: 1x USB 3.0 C to B Cable, In The Box / Item and Quantity: 1x Quick Start Guide, Included Cables / Port Type (Side 1): Male USB-A | Cable Specification: USB 3.0 (5Gbps) | Port Type (Side 2): USB-B (3.0) | Cable Length: 0.84m/2.76ft | External Power for Cable: No, Included Cables / Port Type (Side 1): Male USB-C | Cable Specification: USB 3.0 (5Gbps) | Port Type (Side 2): USB-B (3.0) | Cable Length: 0.84m/2.76ft | External Power for Cable: No, LEDs / LED Number: 1 | Shape: Dot | Color: Blue | Status: Solid | Definition: Powered on, Video / Port: 1x DVI (HDMI or VGA with Bundled Adapters) (Output) | Placement: Rear | Specification: DVI-I (Single Link) | Max Resolution and Refresh Rate: 1920x1200 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 1920x1200 @ 60Hz | HDCP: Not Supported | Chipset: DL-3900 DisplayLink, Video / Port: 1x HDMI (Output) | Placement: Rear | Specification: HDMI 1.3 | Max Resolution and Refresh Rate: 2560x1080 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 2560x1440 @ 50Hz | HDCP: Not Supported | Chipset: DL-3900 DisplayLink, Audio / Port: HDMI Output | Placement: Rear | Connection: HDMI | Signal Output: Digital | Channels: 2 | Chipset: DL-3900 DisplayLink, Audio / Port: Headphone Jack Output | Placement: Front | Connection: 3.5mm (TRS) | Signal Output: Analog | Channels: 2 | Chipset: DL-3900 DisplayLink, Audio / Port: Microphone Jack Input | Placement: Front | Connection: 3.5mm (TRS) | Signal Output: Analog | Channels: 2 | Chipset: DL-3900 DisplayLink, Power / Port: Power Supply | Placement: Rear | Power Host / Device: Device | Connection Type: Region-specific Power Adapter | AC Inlet: Direct AC plug | Notes: UL 60950-1 Certified | Voltage: 12.0V | Amperage: 2.0A | Wattage: 24.0W, USB To Devices / Port: 2x USB-A | Placement: Front | Version and Link Rate: USB 3.0 (5Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W, USB To Devices / Port: 4x USB-A | Placement: Rear | Version and Link Rate: USB 2.0 (480Mbps) | Voltage: 5V | Amperage: 500mA | Wattage: 2.5W, Connection To Host / Port: 1x USB-A or USB-C | Placement: Rear | Version and Link Rate: USB 3.0 (5Gbps), Wired Network / Port: DisplayLink Gigabit Ethernet | Placement: Rear | Version and Link Rate: 1000BASE-T | Chipset: DL-3900 DisplayLink, Physical Stats / Item: USB 3.0 Docking Station | Size (H x W x D) or Length: 3 x 24 x 8 centimeters 1.2 x 9.4 x 3.1 inches | Weight: 323.2 grams 11.4 ounces | SKU or Part Number: UD-3900H

Güncel mağaza teklifleri

Son 48 saat içinde doğrulanmış, stokta mağaza teklifi yok. Eski fiyatlar güncel teklif olarak gösterilmez.
