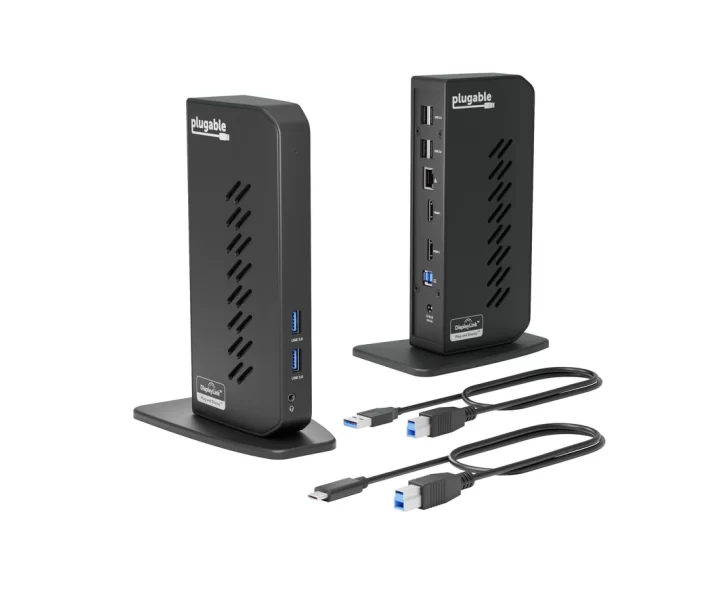

Plugable Dual Monitor Universal Docking Station özellikleri ve fiyatları

Plugable Dual Monitor Universal Docking Station teknik özellikleri

Model kodu

UD-3900Z

Üretici parça kodu

UD-3900Z

Hub / dock türü

Docking Station

Ana cihaz bağlantısı

Port: 1x USB-A or USB-C | Placement: Rear | Version and Link Rate: USB 3.0 (5Gbps)

USB bağlantıları

Port: 2x USB-A | Placement: Front | Version and Link Rate: USB 3.0 (5Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W | Port: 4x USB-A | Placement: Rear | Version and Link Rate: USB 2.0 (480Mbps) | Voltage: 5V | Amperage: 500mA | Wattage: 2.5W

Görüntü çıkışları

Port: 2x HDMI (Output) | Placement: Rear | Specification: HDMI 1.3 | Max Resolution and Refresh Rate: 1920x1200 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 1920x1200 @ 60Hz | HDCP: Not Supported | Chipset: DL-3900 DisplayLink

Ses bağlantıları

Port: Headset Jack Bi-Directional | Placement: Front | Connection: 3.5mm (TRRS) | Max Bit Depth and Sample Rate: 16-bit 48KHz | Signal Output: Analog | Channels: 2 | Chipset: DL-3900 DisplayLink | Port: HDMI Output | Placement: Rear | Connection: DisplayLink HDMI | Signal Output: Digital | Channels: 2 | Chipset: DL-3900 DisplayLink | Port: HDMI Output | Placement: Rear | Connection: DisplayLink HDMI | Signal Output: Digital | Channels: 2 | Chipset: DL-3900 DisplayLink

Ethernet bağlantıları

Port: DisplayLink Gigabit Ethernet | Placement: Rear | Version and Link Rate: 1000BASE-T | Chipset: DL-3900 DisplayLink

Kutu içeriği

Item and Quantity: 1x USB 3.0 & USB-C Docking Station | Item and Quantity: 1x Quick Start Guide | Item and Quantity: 1x USB 3.0 Cable | Item and Quantity: 1x USB-C Cable | Item and Quantity: 1x Power adapter

Verilen kablolar ve uzunlukları

Port Type (Side 1): Male USB-A | Cable Specification: USB 3.0 (5Gbps) | Port Type (Side 2): USB-B (3.0) | Cable Length: 0.9m/2.95ft | External Power for Cable: No | Port Type (Side 1): Male USB-C | Cable Specification: USB 3.0 (5Gbps) | Port Type (Side 2): USB-B (3.0) | Cable Length: 0.9m/2.95ft | External Power for Cable: No

LED göstergeleri

LED Number: 1 | Shape: Dot | Color: Blue | Status: Solid | Definition: Powered on

Boyutlar

19 x 7 x 13.5 centimeters 7.5 x 2.8 x 5.3 inches

Ağırlık

333 g

Dock güç girişi

Port: Power Supply | Placement: Rear | Power Host / Device: Device | Connection Type: Region-specific Power Adapter | AC Inlet: Direct AC plug | Notes: UL 60950-1 Certified | Voltage: 12.0V | Amperage: 2.0A | Wattage: 24.0W

Üreticinin ayrıntılı teknik bilgileri

In The Box / Item and Quantity: 1x USB 3.0 & USB-C Docking Station, In The Box / Item and Quantity: 1x Quick Start Guide, In The Box / Item and Quantity: 1x USB 3.0 Cable, In The Box / Item and Quantity: 1x USB-C Cable, In The Box / Item and Quantity: 1x Power adapter, Included Cables / Port Type (Side 1): Male USB-A | Cable Specification: USB 3.0 (5Gbps) | Port Type (Side 2): USB-B (3.0) | Cable Length: 0.9m/2.95ft | External Power for Cable: No, Included Cables / Port Type (Side 1): Male USB-C | Cable Specification: USB 3.0 (5Gbps) | Port Type (Side 2): USB-B (3.0) | Cable Length: 0.9m/2.95ft | External Power for Cable: No, LEDs / LED Number: 1 | Shape: Dot | Color: Blue | Status: Solid | Definition: Powered on, Video / Port: 2x HDMI (Output) | Placement: Rear | Specification: HDMI 1.3 | Max Resolution and Refresh Rate: 1920x1200 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 1920x1200 @ 60Hz | HDCP: Not Supported | Chipset: DL-3900 DisplayLink, Audio / Port: Headset Jack Bi-Directional | Placement: Front | Connection: 3.5mm (TRRS) | Max Bit Depth and Sample Rate: 16-bit 48KHz | Signal Output: Analog | Channels: 2 | Chipset: DL-3900 DisplayLink, Audio / Port: HDMI Output | Placement: Rear | Connection: DisplayLink HDMI | Signal Output: Digital | Channels: 2 | Chipset: DL-3900 DisplayLink, Audio / Port: HDMI Output | Placement: Rear | Connection: DisplayLink HDMI | Signal Output: Digital | Channels: 2 | Chipset: DL-3900 DisplayLink, Power / Port: Power Supply | Placement: Rear | Power Host / Device: Device | Connection Type: Region-specific Power Adapter | AC Inlet: Direct AC plug | Notes: UL 60950-1 Certified | Voltage: 12.0V | Amperage: 2.0A | Wattage: 24.0W, USB To Devices / Port: 2x USB-A | Placement: Front | Version and Link Rate: USB 3.0 (5Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W, USB To Devices / Port: 4x USB-A | Placement: Rear | Version and Link Rate: USB 2.0 (480Mbps) | Voltage: 5V | Amperage: 500mA | Wattage: 2.5W, Connection To Host / Port: 1x USB-A or USB-C | Placement: Rear | Version and Link Rate: USB 3.0 (5Gbps), Wired Network / Port: DisplayLink Gigabit Ethernet | Placement: Rear | Version and Link Rate: 1000BASE-T | Chipset: DL-3900 DisplayLink, Physical Stats / Item: USB 3.0 Docking Station | Size (H x W x D) or Length: 19 x 7 x 13.5 centimeters 7.5 x 2.8 x 5.3 inches | Weight: 333 grams 11.7 ounces | SKU or Part Number: UD-3900Z
