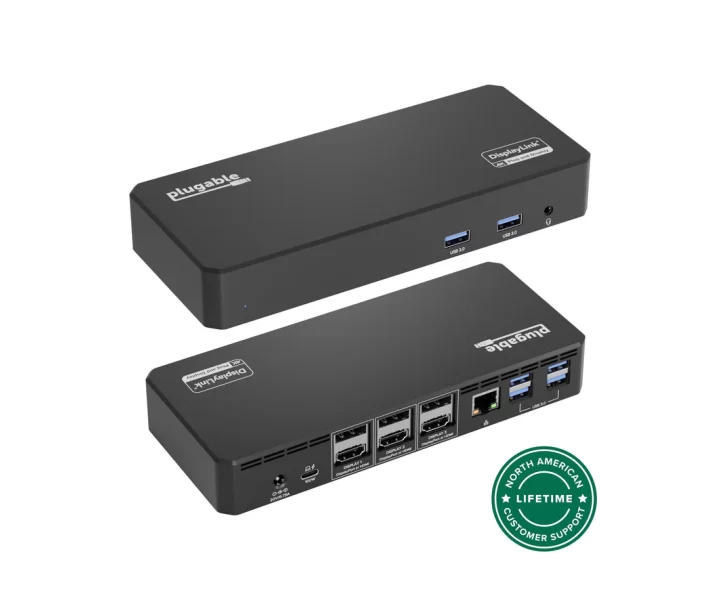

Plugable USB-C Docking Station, 4K Triple Monitors, 100W Laptop Charging özellikleri ve fiyatları

Plugable USB-C Docking Station, 4K Triple Monitors, 100W Laptop Charging teknik özellikleri

Model kodu

UD-6950PDZ

Üretici parça kodu

UD-6950PDZ

Hub / dock türü

Docking Station

Ana cihaz bağlantısı

Port: 1x USB-C | Placement: Rear | Version and Link Rate: USB 3.0 (5Gbps) | Features: USB Power Delivery

USB bağlantıları

Port: 2x USB-A | Placement: Front | Version and Link Rate: USB 3.0 (5Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W | Port: 4x USB-A | Placement: Rear | Version and Link Rate: USB 3.0 (5Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W

Görüntü çıkışları

Port: 1x HDMI 4K or DisplayPort++ (Output) | Placement: Rear | Specification: DisplayPort 1.2 or HDMI 2.0 | Max Resolution and Refresh Rate: 3840x2160 @ 30Hz 3840x1600 @ 30Hz 3440x1440 @ 30Hz 2560x1440 @ 60Hz 1920x1200 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz | HDCP: Host Dependent | Chipset: RTD2142 Realtek | Port: 2x HDMI 4K or DisplayPort++ (Output) | Placement: Rear | Specification: DisplayPort 1.2 or HDMI 2.0 | Max Resolution and Refresh Rate: 3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 2560x1080 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz | HDCP: Not Supported | Chipset: DL-6950 DisplayLink

Görüntü kipleri ve bağlantı koşulları

Host Stream Specification: DisplayPort 1.2 | Host Port Type: Thunderbolt™ 3 or USB-C | Number of Displays Used: 1, 2, or 3 | Max Resolution at Display Count: 3840x2160 @ 30Hz 3840x1600 @ 30Hz 3440x1440 @ 30Hz 2560x1440 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 30Hz, Host Stream Specification: DisplayPort 1.4 | Host Port Type: Thunderbolt™ 3 or USB-C | Number of Displays Used: 1, 2, or 3 | Max Resolution at Display Count: 3840x2160 @ 30Hz 3840x1600 @ 30Hz 3440x1440 @ 30Hz 2560x1440 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz

Ses bağlantıları

Port: HDMI 4K Output | Placement: Rear | Connection: DisplayLink HDMI | Signal Output: Digital | Chipset: DL-6950 DisplayLink | Port: HDMI 4K Output | Placement: Rear | Connection: DisplayLink HDMI | Signal Output: Digital | Chipset: DL-6950 DisplayLink | Port: HDMI 4K Output | Placement: Rear | Connection: HDMI | Signal Output: Digital | Chipset: Alt Mode | Port: DisplayPort Output | Placement: Rear | Connection: DisplayLink DisplayPort | Signal Output: Digital | Chipset: DL-6950 DisplayLink | Port: DisplayPort Output | Placement: Rear | Connection: DisplayLink DisplayPort | Signal Output: Digital | Chipset: DL-6950 DisplayLink | Port: DisplayPort Output | Placement: Rear | Connection: DisplayPort | Signal Output: Digital | Chipset: Alt Mode | Port: Headset Jack Bi-Directional | Placement: Front | Connection: 3.5mm (TRRS) | Signal Output: Analog | Chipset: DL-6950 DisplayLink

Ethernet bağlantıları

Port: DisplayLink Gigabit Ethernet | Placement: Rear | Version and Link Rate: 1000BASE-T | Chipset: DL-6950 DisplayLink

Kutu içeriği

Item and Quantity: 1x USB-C 4K Docking Station | Item and Quantity: 1x Quick Start Guide | Item and Quantity: 1x USB-C Cable | Item and Quantity: 1x Power Adapter

Verilen kablolar ve uzunlukları

Port Type (Side 1): Male IEC Type B | Port Type (Side 2): IEC C5/C6 | Cable Length: 0.84m/2.76ft | Port Type (Side 1): Male USB-C | Cable Specification: USB 3.0 (5Gbps) | Port Type (Side 2): USB-C | Cable Length: 0.84m/2.76ft | External Power for Cable: No

LED göstergeleri

LED Number: 1 | Shape: Dot | Color: Blue | Status: Solid | Definition: Powered on | Notes: Location: Front, left side | LED Number: 1 | Shape: Square | Color: Orange | Status: Blinking | Definition: Network Activity | Notes: Location: Rear Ethernet port | LED Number: 1 | Shape: Square | Color: Green | Status: Solid | Definition: Network Link | Notes: Location: Rear Ethernet port

Boyutlar

3.1 x 20 x 8.5 centimeters 1.2 x 7.9 x 3.3 inches

Ağırlık

477 g

Ana cihaza güç aktarımı ve koşulları

Port: USB-C to Host | Placement: Rear | Power Host / Device: Host | Connection Type: USB-C Power Delivery | Notes: Check Compatibility Table | Voltage: 20.0V | Amperage: 5.0A | Wattage: 100.0W

Dock güç girişi

Port: Power Supply | Placement: Rear | Power Host / Device: Device | Connection Type: Region-specific Power Adapter | AC Inlet: IEC C5/C6 | Voltage: 20.0V | Amperage: 6.75A | Wattage: 135.0W

Üreticinin ayrıntılı teknik bilgileri

In The Box / Item and Quantity: 1x USB-C 4K Docking Station, In The Box / Item and Quantity: 1x Quick Start Guide, In The Box / Item and Quantity: 1x USB-C Cable, In The Box / Item and Quantity: 1x Power Adapter, Included Cables / Port Type (Side 1): Male IEC Type B | Port Type (Side 2): IEC C5/C6 | Cable Length: 0.84m/2.76ft, Included Cables / Port Type (Side 1): Male USB-C | Cable Specification: USB 3.0 (5Gbps) | Port Type (Side 2): USB-C | Cable Length: 0.84m/2.76ft | External Power for Cable: No, LEDs / LED Number: 1 | Shape: Dot | Color: Blue | Status: Solid | Definition: Powered on | Notes: Location: Front, left side, LEDs / LED Number: 1 | Shape: Square | Color: Orange | Status: Blinking | Definition: Network Activity | Notes: Location: Rear Ethernet port, LEDs / LED Number: 1 | Shape: Square | Color: Green | Status: Solid | Definition: Network Link | Notes: Location: Rear Ethernet port, Video / Port: 1x HDMI 4K or DisplayPort++ (Output) | Placement: Rear | Specification: DisplayPort 1.2 or HDMI 2.0 | Max Resolution and Refresh Rate: 3840x2160 @ 30Hz 3840x1600 @ 30Hz 3440x1440 @ 30Hz 2560x1440 @ 60Hz 1920x1200 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz | HDCP: Host Dependent | Chipset: RTD2142 Realtek, Video / Port: 2x HDMI 4K or DisplayPort++ (Output) | Placement: Rear | Specification: DisplayPort 1.2 or HDMI 2.0 | Max Resolution and Refresh Rate: 3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 2560x1080 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz | HDCP: Not Supported | Chipset: DL-6950 DisplayLink, Video Output Modes / Host Stream Specification: DisplayPort 1.2 | Host Port Type: Thunderbolt™ 3 or USB-C | Number of Displays Used: 1, 2, or 3 | Max Resolution at Display Count: 3840x2160 @ 30Hz 3840x1600 @ 30Hz 3440x1440 @ 30Hz 2560x1440 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 30Hz, Video Output Modes / Host Stream Specification: DisplayPort 1.4 | Host Port Type: Thunderbolt™ 3 or USB-C | Number of Displays Used: 1, 2, or 3 | Max Resolution at Display Count: 3840x2160 @ 30Hz 3840x1600 @ 30Hz 3440x1440 @ 30Hz 2560x1440 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz, Audio / Port: HDMI 4K Output | Placement: Rear | Connection: DisplayLink HDMI | Signal Output: Digital | Chipset: DL-6950 DisplayLink, Audio / Port: HDMI 4K Output | Placement: Rear | Connection: DisplayLink HDMI | Signal Output: Digital | Chipset: DL-6950 DisplayLink, Audio / Port: HDMI 4K Output | Placement: Rear | Connection: HDMI | Signal Output: Digital | Chipset: Alt Mode, Audio / Port: DisplayPort Output | Placement: Rear | Connection: DisplayLink DisplayPort | Signal Output: Digital | Chipset: DL-6950 DisplayLink, Audio / Port: DisplayPort Output | Placement: Rear | Connection: DisplayLink DisplayPort | Signal Output: Digital | Chipset: DL-6950 DisplayLink, Audio / Port: DisplayPort Output | Placement: Rear | Connection: DisplayPort | Signal Output: Digital | Chipset: Alt Mode, Audio / Port: Headset Jack Bi-Directional | Placement: Front | Connection: 3.5mm (TRRS) | Signal Output: Analog | Chipset: DL-6950 DisplayLink, Power / Port: Power Supply | Placement: Rear | Power Host / Device: Device | Connection Type: Region-specific Power Adapter | AC Inlet: IEC C5/C6 | Voltage: 20.0V | Amperage: 6.75A | Wattage: 135.0W, Power / Port: USB-C to Host | Placement: Rear | Power Host / Device: Host | Connection Type: USB-C Power Delivery | Notes: Check Compatibility Table | Voltage: 20.0V | Amperage: 5.0A | Wattage: 100.0W, USB To Devices / Port: 2x USB-A | Placement: Front | Version and Link Rate: USB 3.0 (5Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W, USB To Devices / Port: 4x USB-A | Placement: Rear | Version and Link Rate: USB 3.0 (5Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W, Connection To Host / Port: 1x USB-C | Placement: Rear | Version and Link Rate: USB 3.0 (5Gbps) | Features: USB Power Delivery, Wired Network / Port: DisplayLink Gigabit Ethernet | Placement: Rear | Version and Link Rate: 1000BASE-T | Chipset: DL-6950 DisplayLink, Physical Stats / Item: UD-6950PDZ Docking Station | Size (H x W x D) or Length: 3.1 x 20 x 8.5 centimeters 1.2 x 7.9 x 3.3 inches | Weight: 477 grams 16.8 ounces | SKU or Part Number: UD-6950PDZ
