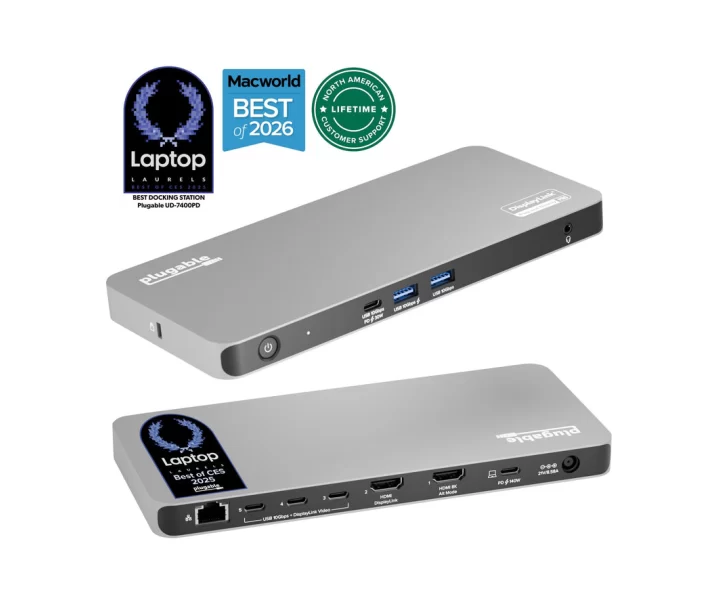

Plugable USB-C 5-Display Docking Station with HDMI 2.1 and 140W charging özellikleri ve fiyatları

Plugable USB-C 5-Display Docking Station with HDMI 2.1 and 140W charging teknik özellikleri

Model kodu

UD-7400PD

Üretici parça kodu

UD-7400PD

Hub / dock türü

Docking Station

Ana cihaz bağlantısı

Port: 1x USB-C | Placement: Rear | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Features: USB Power Delivery

USB bağlantıları

Port: 1x USB-C | Placement: Front | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Features: USB Power Delivery | Voltage: 15V | Amperage: 2000mA | Wattage: 30W | Port: 1x USB-A | Placement: Front | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Features: Battery Charging 1.2 | Voltage: 5V | Amperage: 1500mA | Wattage: 7.5W | Port: 1x USB-A | Placement: Front | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W | Port: 3x USB-C | Placement: Rear | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Features: DisplayLink Video | Voltage: 5V | Amperage: 3000mA | Wattage: 15W

Görüntü çıkışları

Port: 1x HDMI 8K (Output) | Placement: Rear | Specification: HDMI 2.1 | Max Resolution and Refresh Rate: 7680x4320 @ 30Hz | HDCP: Supported | Chipset: VMM7100 Synaptics | Port: 1x HDMI 4K HDR (Output) | Placement: Rear | Specification: HDMI 2.0a | Max Resolution and Refresh Rate: 3840x2160 @ 60Hz | HDCP: Not Supported | Chipset: DL-7400 DisplayLink | Port: 3x USB-C (Output) | Placement: Rear | Specification: DisplayPort 1.4 | Max Resolution and Refresh Rate: 7680x4320 @ 60Hz | HDCP: Not Supported | Chipset: DL-7400 DisplayLink

Ses bağlantıları

Port: Headset Jack Bi-Directional | Placement: Front | Connection: 3.5mm (TRRS) | Signal Output: Analog | Channels: 2 | Chipset: DL-7400 DisplayLink

Ethernet bağlantıları

Port: DisplayLink 2.5 Gbps Ethernet | Placement: Rear | Version and Link Rate: 2.5GBASE-T | Features: Wake-on-LAN (WoL) | Chipset: DL-7400 DisplayLink

Kutu içeriği

Item and Quantity: 1x Plugable UD-7400PD Docking Station | Item and Quantity: 1x Power Adapter | Item and Quantity: 1x Power Cable | Item and Quantity: 1x Quick Start Guide | Item and Quantity: 1x USB-C Cable

Verilen kablolar ve uzunlukları

Port Type (Side 1): Male USB-C | Cable Specification: USB 3.2 Gen 2 (10Gbps) | Port Type (Side 2): USB-C | Cable Length: 1.0m/3.28ft | External Power for Cable: No

LED göstergeleri

LED Number: 1 | Shape: Dot | Color: Blue | Status: Solid | Definition: Powered on

Boyutlar

1.7 x 21 x 9.5 centimeters 0.7 x 8.3 x 3.7 inches

Ağırlık

492 g

Ana cihaza güç aktarımı ve koşulları

Port: USB-C to Host | Placement: Rear | Power Host / Device: Host | Connection Type: USB-C Power Delivery 3.1 | Voltage: 28.0V | Amperage: 5.0A | Wattage: 140.0W

Dock güç girişi

Port: Power Supply | Placement: Rear | Power Host / Device: Device | Connection Type: Region-specific Power Adapter | AC Inlet: IEC C5/C6 | Notes: UL 60950-1 Certified | Voltage: 21.0V | Amperage: 8.58A | Wattage: 180.0W

Üreticinin ayrıntılı teknik bilgileri

In The Box / Item and Quantity: 1x Plugable UD-7400PD Docking Station, In The Box / Item and Quantity: 1x Power Adapter, In The Box / Item and Quantity: 1x Power Cable, In The Box / Item and Quantity: 1x Quick Start Guide, In The Box / Item and Quantity: 1x USB-C Cable, Included Cables / Port Type (Side 1): Male USB-C | Cable Specification: USB 3.2 Gen 2 (10Gbps) | Port Type (Side 2): USB-C | Cable Length: 1.0m/3.28ft | External Power for Cable: No, LEDs / LED Number: 1 | Shape: Dot | Color: Blue | Status: Solid | Definition: Powered on, Video / Port: 1x HDMI 8K (Output) | Placement: Rear | Specification: HDMI 2.1 | Max Resolution and Refresh Rate: 7680x4320 @ 30Hz | HDCP: Supported | Chipset: VMM7100 Synaptics, Video / Port: 1x HDMI 4K HDR (Output) | Placement: Rear | Specification: HDMI 2.0a | Max Resolution and Refresh Rate: 3840x2160 @ 60Hz | HDCP: Not Supported | Chipset: DL-7400 DisplayLink, Video / Port: 3x USB-C (Output) | Placement: Rear | Specification: DisplayPort 1.4 | Max Resolution and Refresh Rate: 7680x4320 @ 60Hz | HDCP: Not Supported | Chipset: DL-7400 DisplayLink, Audio / Port: Headset Jack Bi-Directional | Placement: Front | Connection: 3.5mm (TRRS) | Signal Output: Analog | Channels: 2 | Chipset: DL-7400 DisplayLink, Power / Port: USB-C to Host | Placement: Rear | Power Host / Device: Host | Connection Type: USB-C Power Delivery 3.1 | Voltage: 28.0V | Amperage: 5.0A | Wattage: 140.0W, Power / Port: Power Supply | Placement: Rear | Power Host / Device: Device | Connection Type: Region-specific Power Adapter | AC Inlet: IEC C5/C6 | Notes: UL 60950-1 Certified | Voltage: 21.0V | Amperage: 8.58A | Wattage: 180.0W, USB To Devices / Port: 1x USB-C | Placement: Front | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Features: USB Power Delivery | Voltage: 15V | Amperage: 2000mA | Wattage: 30W, USB To Devices / Port: 1x USB-A | Placement: Front | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Features: Battery Charging 1.2 | Voltage: 5V | Amperage: 1500mA | Wattage: 7.5W, USB To Devices / Port: 1x USB-A | Placement: Front | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W, USB To Devices / Port: 3x USB-C | Placement: Rear | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Features: DisplayLink Video | Voltage: 5V | Amperage: 3000mA | Wattage: 15W, Connection To Host / Port: 1x USB-C | Placement: Rear | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Features: USB Power Delivery, Wired Network / Port: DisplayLink 2.5 Gbps Ethernet | Placement: Rear | Version and Link Rate: 2.5GBASE-T | Features: Wake-on-LAN (WoL) | Chipset: DL-7400 DisplayLink, Physical Stats / Item: UD-7400PD Docking Station | Size (H x W x D) or Length: 1.7 x 21 x 9.5 centimeters 0.7 x 8.3 x 3.7 inches | Weight: 492 grams 17.4 ounces | SKU or Part Number: UD-7400PD
