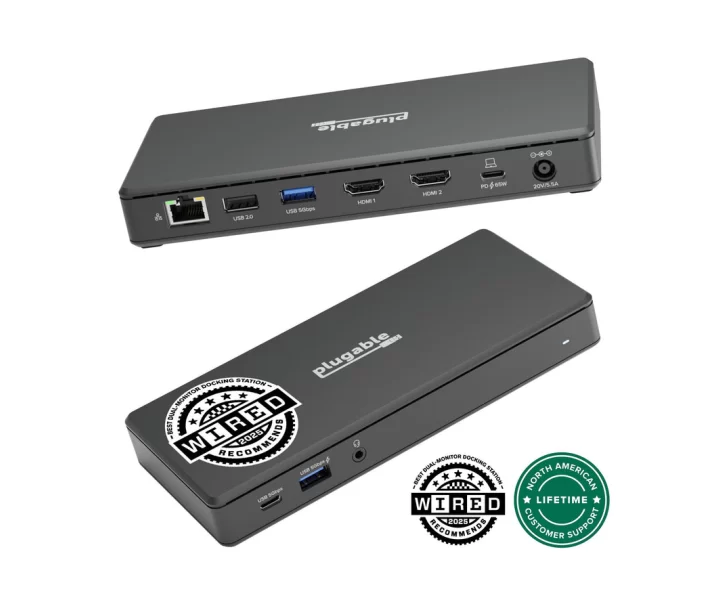

Plugable USB-C Dual HDMI Display Docking Station for Windows, ChomeOS, 65W Laptop Charging özellikleri ve fiyatları

Plugable USB-C Dual HDMI Display Docking Station for Windows, ChomeOS, 65W Laptop Charging teknik özellikleri

Model kodu

UD-MSTH2

Üretici parça kodu

UD-MSTH2

Hub / dock türü

Docking Station

Ana cihaz bağlantısı

Port: 1x USB-C | Placement: Rear | Version and Link Rate: USB 3.0 (5Gbps) | Features: USB Power Delivery

USB bağlantıları

Port: 1x USB-A | Placement: Front | Version and Link Rate: USB 3.0 (5Gbps) | Features: Battery Charging 1.2 | Voltage: 5V | Amperage: 1500mA | Wattage: 7.5W | Port: 1x USB-A | Placement: Rear | Version and Link Rate: USB 3.0 (5Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W | Port: 1x USB-A | Placement: Rear | Version and Link Rate: USB 2.0 (480Mbps) | Voltage: 5V | Amperage: 500mA | Wattage: 2.5W | Port: 1x USB-C | Placement: Front | Version and Link Rate: USB 3.0 (5Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W

Görüntü çıkışları

Port: 2x HDMI 4K (Output) | Placement: Rear | Specification: HDMI 2.0 | Max Resolution and Refresh Rate: 3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 2560x1080 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz | HDCP: Host Dependent | Chipset: RTD2143 Realtek

Görüntü kipleri ve bağlantı koşulları

Host Stream Specification: DisplayPort 1.2 HBR2 | Host Port Type: Thunderbolt™ 3 or USB-C | Number of Displays Used: 1 | Max Resolution at Display Count: 3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 2560x1080 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 30Hz, Host Stream Specification: DisplayPort 1.2 HBR2 | Host Port Type: Thunderbolt™ 3 or USB-C | Number of Displays Used: 2 | Max Resolution at Display Count: 1920x1200 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 1920x1080 @ 60Hz, Host Stream Specification: DisplayPort 1.4 MST, DSC 1.2, HBR3 | Host Port Type: Thunderbolt™ 4 or Thunderbolt™ 3 or USB-C | Number of Displays Used: 1 | Max Resolution at Display Count: 3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 2560x1080 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz, Host Stream Specification: DisplayPort 1.4 MST, DSC 1.2, HBR3 | Host Port Type: Thunderbolt™ 4 or Thunderbolt™ 3 or USB-C | Number of Displays Used: 2 | Max Resolution at Display Count: 3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 2560x1080 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz

Ses bağlantıları

Port: Headset Jack Bi-Directional | Placement: Front | Connection: 3.5mm (TRRS) | Max Bit Depth and Sample Rate: 16-bit 48KHz | Signal Output: Analog | Channels: 2 | Chipset: ALC4030U Realtek

Ethernet bağlantıları

Port: Gigabit Ethernet | Placement: Rear | Version and Link Rate: 1000BASE-T | Chipset: RTL8153B Realtek

Kutu içeriği

Item and Quantity: 1x USB-C Dual 4K Docking Station | Item and Quantity: 1x USB-C to USB-C cable | Item and Quantity: 1x Power Adapter | Item and Quantity: 1x Quick Start Guide

Verilen kablolar ve uzunlukları

Port Type (Side 1): Male USB-C | Cable Specification: USB 3.2 Gen 2 (10Gbps) | Port Type (Side 2): USB-C | Cable Length: 1.0m/3.28ft | External Power for Cable: No

LED göstergeleri

LED Number: 1 | Shape: Line — | Color: Blue | Status: Solid | Definition: Powered on

Boyutlar

2 x 18 x 8.5 centimeters 0.8 x 7.1 x 3.3 inches

Ağırlık

230 g

Ana cihaza güç aktarımı ve koşulları

Port: USB-C to Host | Placement: Rear | Power Host / Device: Host | Connection Type: USB-C | Voltage: 20.0V | Amperage: 3.25A | Wattage: Up to 65.0W

Dock güç girişi

Port: Power Supply | Placement: Rear | Power Host / Device: Device | Connection Type: Region-specific Power Adapter | AC Inlet: IEC C13/C14 | Notes: UL 60950-1 Certified | Voltage: 20.0V | Amperage: 5.5A | Wattage: Up to 110.0W

Üreticinin ayrıntılı teknik bilgileri

In The Box / Item and Quantity: 1x USB-C Dual 4K Docking Station, In The Box / Item and Quantity: 1x USB-C to USB-C cable, In The Box / Item and Quantity: 1x Power Adapter, In The Box / Item and Quantity: 1x Quick Start Guide, Included Cables / Port Type (Side 1): Male USB-C | Cable Specification: USB 3.2 Gen 2 (10Gbps) | Port Type (Side 2): USB-C | Cable Length: 1.0m/3.28ft | External Power for Cable: No, LEDs / LED Number: 1 | Shape: Line — | Color: Blue | Status: Solid | Definition: Powered on, Video / Port: 2x HDMI 4K (Output) | Placement: Rear | Specification: HDMI 2.0 | Max Resolution and Refresh Rate: 3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 2560x1080 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz | HDCP: Host Dependent | Chipset: RTD2143 Realtek, Video Output Modes / Host Stream Specification: DisplayPort 1.2 HBR2 | Host Port Type: Thunderbolt™ 3 or USB-C | Number of Displays Used: 1 | Max Resolution at Display Count: 3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 2560x1080 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 30Hz, Video Output Modes / Host Stream Specification: DisplayPort 1.2 HBR2 | Host Port Type: Thunderbolt™ 3 or USB-C | Number of Displays Used: 2 | Max Resolution at Display Count: 1920x1200 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 1920x1080 @ 60Hz, Video Output Modes / Host Stream Specification: DisplayPort 1.4 MST, DSC 1.2, HBR3 | Host Port Type: Thunderbolt™ 4 or Thunderbolt™ 3 or USB-C | Number of Displays Used: 1 | Max Resolution at Display Count: 3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 2560x1080 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz, Video Output Modes / Host Stream Specification: DisplayPort 1.4 MST, DSC 1.2, HBR3 | Host Port Type: Thunderbolt™ 4 or Thunderbolt™ 3 or USB-C | Number of Displays Used: 2 | Max Resolution at Display Count: 3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 2560x1080 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz, Audio / Port: Headset Jack Bi-Directional | Placement: Front | Connection: 3.5mm (TRRS) | Max Bit Depth and Sample Rate: 16-bit 48KHz | Signal Output: Analog | Channels: 2 | Chipset: ALC4030U Realtek, Power / Port: Power Supply | Placement: Rear | Power Host / Device: Device | Connection Type: Region-specific Power Adapter | AC Inlet: IEC C13/C14 | Notes: UL 60950-1 Certified | Voltage: 20.0V | Amperage: 5.5A | Wattage: Up to 110.0W, Power / Port: USB-C to Host | Placement: Rear | Power Host / Device: Host | Connection Type: USB-C | Voltage: 20.0V | Amperage: 3.25A | Wattage: Up to 65.0W, USB To Devices / Port: 1x USB-A | Placement: Front | Version and Link Rate: USB 3.0 (5Gbps) | Features: Battery Charging 1.2 | Voltage: 5V | Amperage: 1500mA | Wattage: 7.5W, USB To Devices / Port: 1x USB-A | Placement: Rear | Version and Link Rate: USB 3.0 (5Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W, USB To Devices / Port: 1x USB-A | Placement: Rear | Version and Link Rate: USB 2.0 (480Mbps) | Voltage: 5V | Amperage: 500mA | Wattage: 2.5W, USB To Devices / Port: 1x USB-C | Placement: Front | Version and Link Rate: USB 3.0 (5Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W, Connection To Host / Port: 1x USB-C | Placement: Rear | Version and Link Rate: USB 3.0 (5Gbps) | Features: USB Power Delivery, Wired Network / Port: Gigabit Ethernet | Placement: Rear | Version and Link Rate: 1000BASE-T | Chipset: RTL8153B Realtek, Physical Stats / Item: UD-MSTH2 Docking Station | Size (H x W x D) or Length: 2 x 18 x 8.5 centimeters 0.8 x 7.1 x 3.3 inches | Weight: 230 grams 8.1 ounces | SKU or Part Number: UD-MSTH2
