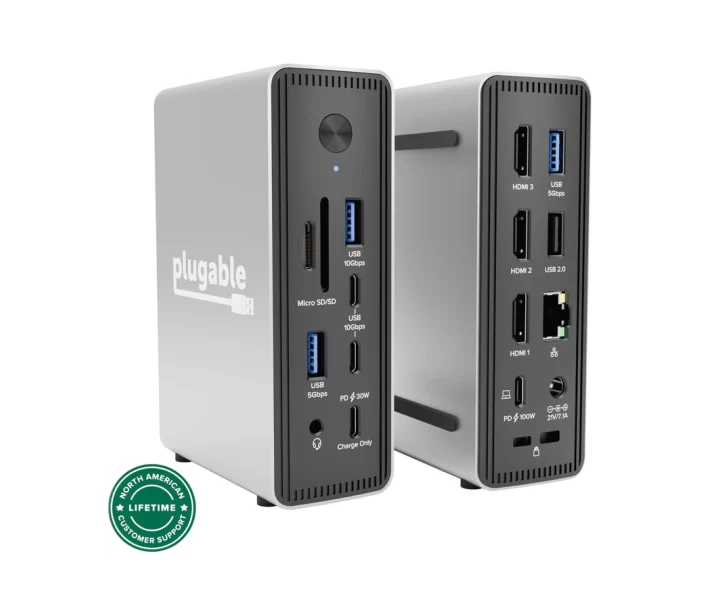

Plugable USB-C Triple Monitor Docking Station for Windows, 100W Laptop Charging özellikleri ve fiyatları

Plugable USB-C Triple Monitor Docking Station for Windows, 100W Laptop Charging teknik özellikleri

Model kodu

UD-MSTH3

Üretici parça kodu

UD-MSTH3

Hub / dock türü

Docking Station

Ana cihaz bağlantısı

Port: 1x USB-C | Placement: Rear | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Features: Alternate Mode Video or USB Power Delivery

USB bağlantıları

Port: 1x USB-A | Placement: Rear | Version and Link Rate: USB 2.0 (480Mbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W | Port: 1x USB-A | Placement: Rear | Version and Link Rate: USB 3.2 Gen 1 (5Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W | Port: 1x USB-A | Placement: Front | Version and Link Rate: USB 3.2 Gen 1 (5Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W | Port: 1x USB-A | Placement: Front | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W | Port: 2x USB-C | Placement: Front | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Voltage: 5V | Amperage: 1500mA | Wattage: 7.5W | Port: 1x USB-C | Placement: Front | Version and Link Rate: USB-C Power Delivery (Charge Only) | Features: USB Power Delivery | Voltage: 20V | Amperage: 3000mA | Wattage: 30W

Görüntü çıkışları

Port: 3x HDMI 4K (Output) | Placement: Rear | Specification: HDMI 2.0b | Max Resolution and Refresh Rate: 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz | HDCP: Host Dependent | Chipset: RTD2145 Realtek

Görüntü kipleri ve bağlantı koşulları

Host Stream Specification: DisplayPort 2.0 MST, DSC 1.2a, HBR3 | Host Port Type: Thunderbolt™ 4 or Thunderbolt™ 3 or USB-C | Number of Displays Used: 1 | Max Resolution at Display Count: 3840x1600 @ 30Hz 3440x1440 @ 30Hz 2560x1440 @ 60Hz 1920x1200 @60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz, Host Stream Specification: DisplayPort 2.0 MST, DSC 1.2a, HBR3 | Host Port Type: Thunderbolt™ 4 or Thunderbolt™ 3 or USB-C | Number of Displays Used: 2 | Max Resolution at Display Count: 3840x1600 @ 30Hz 3440x1440 @ 30Hz 2560x1440 @ 60Hz 1920x1200 @60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz, Host Stream Specification: DisplayPort 2.0 MST, DSC 1.2a, HBR3 | Host Port Type: Thunderbolt™ 4 or Thunderbolt™ 3 or USB-C | Number of Displays Used: 2 | Max Resolution at Display Count: 3840x1600 @ 30Hz 3440x1440 @ 30Hz 2560x1440 @ 60Hz 1920x1200 @60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz

Ses bağlantıları

Port: Headset Jack Bi-Directional | Placement: Front | Connection: 3.5mm (TRRS) | Max Bit Depth and Sample Rate: 16-bit 48KHz | Signal Output: Analog | Channels: 2 | Chipset: ALC4032 Realtek

Ethernet bağlantıları

Port: 2.5 Gigabit Ethernet | Placement: Rear | Version and Link Rate: 2.5GBASE-T | Chipset: RTL8156B Realtek

Kart okuyucu

Media Interface: SD or SDHC or SDXC or MMC | Bus Interface: Ultra-High Speed I (UHS-I) | Bus Speed: 104 MB/s | Chipset: Genesys Logic GL3231S | Media Interface: Micro SD | Bus Interface: Ultra-High Speed I (UHS-I) | Bus Speed: 104 MB/s | Chipset: Genesys Logic GL3231S

Kutu içeriği

Item and Quantity: 1x USB-C Triple HDMI Docking Station | Item and Quantity: 1x USB-C to USB-C cable | Item and Quantity: 1x 149.1W Power Adapter | Item and Quantity: 1x Power Cable | Item and Quantity: 1x Quick Start Guide

Verilen kablolar ve uzunlukları

Port Type (Side 1): Male USB-C | Cable Specification: USB 3.2 Gen 2 (10Gbps) | Port Type (Side 2): USB-C | Cable Length: 1.0m/3.28ft | External Power for Cable: No

LED göstergeleri

LED Number: 1 | Shape: Dot | Color: Green | Status: Solid | Definition: Powered on | Notes: Location: Front, top/right | LED Number: 1 | Shape: Dot | Color: Blue | Status: Solid | Definition: Powered on, active host connection | Notes: Location: Front, top/right | LED Number: 1 | Shape: Square | Color: Orange | Status: Blinking | Definition: Network Activity | Notes: Location: Rear Ethernet port | LED Number: 1 | Shape: Square | Color: Green | Status: Solid | Definition: Network Link | Notes: Location: Rear Ethernet port

Boyutlar

12.2 x 4.2 x 8.6 centimeters 4.8 x 1.7 x 3.4 inches

Ağırlık

463 g

Ana cihaza güç aktarımı ve koşulları

Port: USB-C to Host | Placement: Rear | Power Host / Device: Host | Connection Type: USB-C Power Delivery 3.0 | Voltage: 20.0V | Amperage: 5mA | Wattage: Up to 100.0W

Dock güç girişi

Port: Power Supply | Placement: Rear | Power Host / Device: Device | Connection Type: Region-specific Power Adapter | AC Inlet: IEC C5/C6 | Voltage: 21.0V | Amperage: 7.1A | Wattage: Up to 149.1W

Üreticinin ayrıntılı teknik bilgileri

In The Box / Item and Quantity: 1x USB-C Triple HDMI Docking Station, In The Box / Item and Quantity: 1x USB-C to USB-C cable, In The Box / Item and Quantity: 1x 149.1W Power Adapter, In The Box / Item and Quantity: 1x Power Cable, In The Box / Item and Quantity: 1x Quick Start Guide, Included Cables / Port Type (Side 1): Male USB-C | Cable Specification: USB 3.2 Gen 2 (10Gbps) | Port Type (Side 2): USB-C | Cable Length: 1.0m/3.28ft | External Power for Cable: No, LEDs / LED Number: 1 | Shape: Dot | Color: Green | Status: Solid | Definition: Powered on | Notes: Location: Front, top/right, LEDs / LED Number: 1 | Shape: Dot | Color: Blue | Status: Solid | Definition: Powered on, active host connection | Notes: Location: Front, top/right, LEDs / LED Number: 1 | Shape: Square | Color: Orange | Status: Blinking | Definition: Network Activity | Notes: Location: Rear Ethernet port, LEDs / LED Number: 1 | Shape: Square | Color: Green | Status: Solid | Definition: Network Link | Notes: Location: Rear Ethernet port, Video / Port: 3x HDMI 4K (Output) | Placement: Rear | Specification: HDMI 2.0b | Max Resolution and Refresh Rate: 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz | HDCP: Host Dependent | Chipset: RTD2145 Realtek, Video Output Modes / Host Stream Specification: DisplayPort 2.0 MST, DSC 1.2a, HBR3 | Host Port Type: Thunderbolt™ 4 or Thunderbolt™ 3 or USB-C | Number of Displays Used: 1 | Max Resolution at Display Count: 3840x1600 @ 30Hz 3440x1440 @ 30Hz 2560x1440 @ 60Hz 1920x1200 @60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz, Video Output Modes / Host Stream Specification: DisplayPort 2.0 MST, DSC 1.2a, HBR3 | Host Port Type: Thunderbolt™ 4 or Thunderbolt™ 3 or USB-C | Number of Displays Used: 2 | Max Resolution at Display Count: 3840x1600 @ 30Hz 3440x1440 @ 30Hz 2560x1440 @ 60Hz 1920x1200 @60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz, Video Output Modes / Host Stream Specification: DisplayPort 2.0 MST, DSC 1.2a, HBR3 | Host Port Type: Thunderbolt™ 4 or Thunderbolt™ 3 or USB-C | Number of Displays Used: 2 | Max Resolution at Display Count: 3840x1600 @ 30Hz 3440x1440 @ 30Hz 2560x1440 @ 60Hz 1920x1200 @60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz, Audio / Port: Headset Jack Bi-Directional | Placement: Front | Connection: 3.5mm (TRRS) | Max Bit Depth and Sample Rate: 16-bit 48KHz | Signal Output: Analog | Channels: 2 | Chipset: ALC4032 Realtek, Power / Port: Power Supply | Placement: Rear | Power Host / Device: Device | Connection Type: Region-specific Power Adapter | AC Inlet: IEC C5/C6 | Voltage: 21.0V | Amperage: 7.1A | Wattage: Up to 149.1W, Power / Port: USB-C to Host | Placement: Rear | Power Host / Device: Host | Connection Type: USB-C Power Delivery 3.0 | Voltage: 20.0V | Amperage: 5mA | Wattage: Up to 100.0W, USB To Devices / Port: 1x USB-A | Placement: Rear | Version and Link Rate: USB 2.0 (480Mbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W, USB To Devices / Port: 1x USB-A | Placement: Rear | Version and Link Rate: USB 3.2 Gen 1 (5Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W, USB To Devices / Port: 1x USB-A | Placement: Front | Version and Link Rate: USB 3.2 Gen 1 (5Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W, USB To Devices / Port: 1x USB-A | Placement: Front | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W, USB To Devices / Port: 2x USB-C | Placement: Front | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Voltage: 5V | Amperage: 1500mA | Wattage: 7.5W, USB To Devices / Port: 1x USB-C | Placement: Front | Version and Link Rate: USB-C Power Delivery (Charge Only) | Features: USB Power Delivery | Voltage: 20V | Amperage: 3000mA | Wattage: 30W, Connection To Host / Port: 1x USB-C | Placement: Rear | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Features: Alternate Mode Video or USB Power Delivery, Wired Network / Port: 2.5 Gigabit Ethernet | Placement: Rear | Version and Link Rate: 2.5GBASE-T | Chipset: RTL8156B Realtek, Physical Stats / Item: UD-MSTH3 Docking Station | Size (H x W x D) or Length: 12.2 x 4.2 x 8.6 centimeters 4.8 x 1.7 x 3.4 inches | Weight: 463 grams 16.3 ounces | SKU or Part Number: UD-MSTH3, Card Reader / Media Interface: SD or SDHC or SDXC or MMC | Bus Interface: Ultra-High Speed I (UHS-I) | Bus Speed: 104 MB/s | Chipset: Genesys Logic GL3231S, Card Reader / Media Interface: Micro SD | Bus Interface: Ultra-High Speed I (UHS-I) | Bus Speed: 104 MB/s | Chipset: Genesys Logic GL3231S
