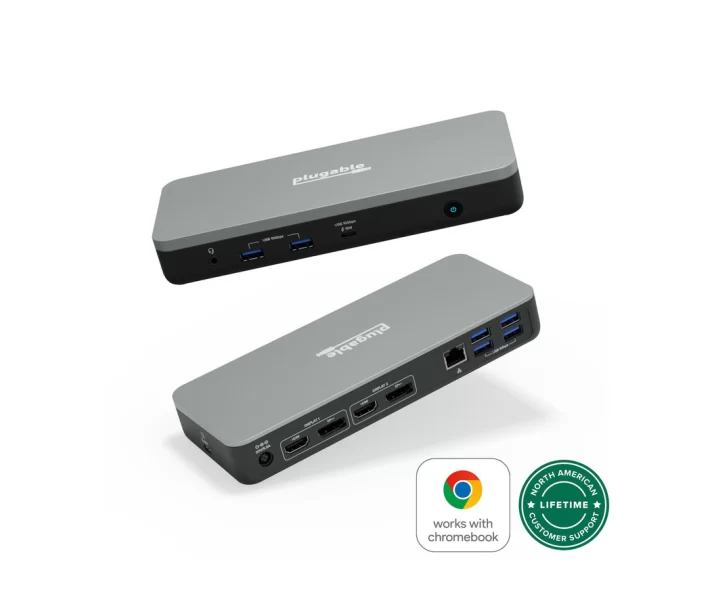

Plugable USB-C Dual Monitor Docking Station, Certified Works with Chromebook, 60W Charging özellikleri ve fiyatları

Plugable USB-C Dual Monitor Docking Station, Certified Works with Chromebook, 60W Charging teknik özellikleri

Model kodu

UD-MSTHDC

Üretici parça kodu

UD-MSTHDC

Hub / dock türü

Docking Station

Ana cihaz bağlantısı

Port: 1x USB-C | Placement: Right | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Features: USB Power Delivery

USB bağlantıları

Port: 2x USB-A | Placement: Front | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Features: Battery Charging 1.2 | Voltage: 5V | Amperage: 1500mA | Wattage: 7.5W | Port: 4x USB-A | Placement: Rear | Version and Link Rate: USB 3.0 (5Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W | Port: 1x USB-C | Placement: Front | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Features: Battery Charging 1.2 | Voltage: 5V | Amperage: 3000mA | Wattage: 15W

Görüntü çıkışları

Port: 2x HDMI or DisplayPort (Output) | Placement: Rear | Specification: DisplayPort 1.4 or HDMI 2.0 | Max Resolution and Refresh Rate: 3840x2160 @ 30Hz 3840x1600 @ 30Hz 3440x1440 @ 30Hz 2560x1440 @ 60Hz 1920x1200 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz | HDCP: Host Dependent | Chipset: RTD2186 Realtek

Ses bağlantıları

Port: Headset Jack Bi-Directional | Placement: Front | Connection: 3.5mm (TRS) | Signal Output: Analog | Channels: 2 | Chipset: ALC5686 Realtek

Ethernet bağlantıları

Port: Gigabit Ethernet | Placement: Rear | Version and Link Rate: 1000BASE-T | Chipset: RTL8153 Realtek

Kutu içeriği

Item and Quantity: 1x USB-C Dual 4K Docking Station | Item and Quantity: 1x Quick Start Guide | Item and Quantity: 1x USB-C Cable | Item and Quantity: 1x Power Adapter

Verilen kablolar ve uzunlukları

Port Type (Side 1): Male USB-C | Cable Specification: USB 3.2 Gen 2 (10Gbps) | Port Type (Side 2): USB-C | Cable Length: 1.0m/3.28ft | External Power for Cable: No

LED göstergeleri

LED Number: 1 | Shape: Power Symbol | Color: White | Status: Solid | Definition: Powered on

Boyutlar

3 x 20.5 x 8.56 centimeters 1.2 x 8.1 x 3.4 inches

Ağırlık

738 g

Ana cihaza güç aktarımı ve koşulları

Port: USB-C to Host | Placement: Right | Power Host / Device: Host | Connection Type: USB-C Power Delivery 3.0 | Voltage: 20.0V | Amperage: 3.0A | Wattage: Up to 60.0W

Dock güç girişi

Port: Power Supply | Placement: Rear | Power Host / Device: Device | Connection Type: Region-specific Power Adapter | AC Inlet: IEC C13/C14 | Notes: UL 60950-1 Certified | Voltage: 20.0V | Amperage: 5.5A | Wattage: Up to 110.0W

Üreticinin ayrıntılı teknik bilgileri

In The Box / Item and Quantity: 1x USB-C Dual 4K Docking Station, In The Box / Item and Quantity: 1x Quick Start Guide, In The Box / Item and Quantity: 1x USB-C Cable, In The Box / Item and Quantity: 1x Power Adapter, Included Cables / Port Type (Side 1): Male USB-C | Cable Specification: USB 3.2 Gen 2 (10Gbps) | Port Type (Side 2): USB-C | Cable Length: 1.0m/3.28ft | External Power for Cable: No, LEDs / LED Number: 1 | Shape: Power Symbol | Color: White | Status: Solid | Definition: Powered on, Video / Port: 2x HDMI or DisplayPort (Output) | Placement: Rear | Specification: DisplayPort 1.4 or HDMI 2.0 | Max Resolution and Refresh Rate: 3840x2160 @ 30Hz 3840x1600 @ 30Hz 3440x1440 @ 30Hz 2560x1440 @ 60Hz 1920x1200 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz | HDCP: Host Dependent | Chipset: RTD2186 Realtek, Audio / Port: Headset Jack Bi-Directional | Placement: Front | Connection: 3.5mm (TRS) | Signal Output: Analog | Channels: 2 | Chipset: ALC5686 Realtek, Power / Port: USB-C to Host | Placement: Right | Power Host / Device: Host | Connection Type: USB-C Power Delivery 3.0 | Voltage: 20.0V | Amperage: 3.0A | Wattage: Up to 60.0W, Power / Port: Power Supply | Placement: Rear | Power Host / Device: Device | Connection Type: Region-specific Power Adapter | AC Inlet: IEC C13/C14 | Notes: UL 60950-1 Certified | Voltage: 20.0V | Amperage: 5.5A | Wattage: Up to 110.0W, USB To Devices / Port: 2x USB-A | Placement: Front | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Features: Battery Charging 1.2 | Voltage: 5V | Amperage: 1500mA | Wattage: 7.5W, USB To Devices / Port: 4x USB-A | Placement: Rear | Version and Link Rate: USB 3.0 (5Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W, USB To Devices / Port: 1x USB-C | Placement: Front | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Features: Battery Charging 1.2 | Voltage: 5V | Amperage: 3000mA | Wattage: 15W, Connection To Host / Port: 1x USB-C | Placement: Right | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Features: USB Power Delivery, Wired Network / Port: Gigabit Ethernet | Placement: Rear | Version and Link Rate: 1000BASE-T | Chipset: RTL8153 Realtek, Physical Stats / Item: UD-MSTHDC Docking Station | Size (H x W x D) or Length: 3 x 20.5 x 8.56 centimeters 1.2 x 8.1 x 3.4 inches | Weight: 738 grams 26 ounces | SKU or Part Number: UD-MSTHDC

Güncel mağaza teklifleri

Son 48 saat içinde doğrulanmış, stokta mağaza teklifi yok. Eski fiyatlar güncel teklif olarak gösterilmez.
