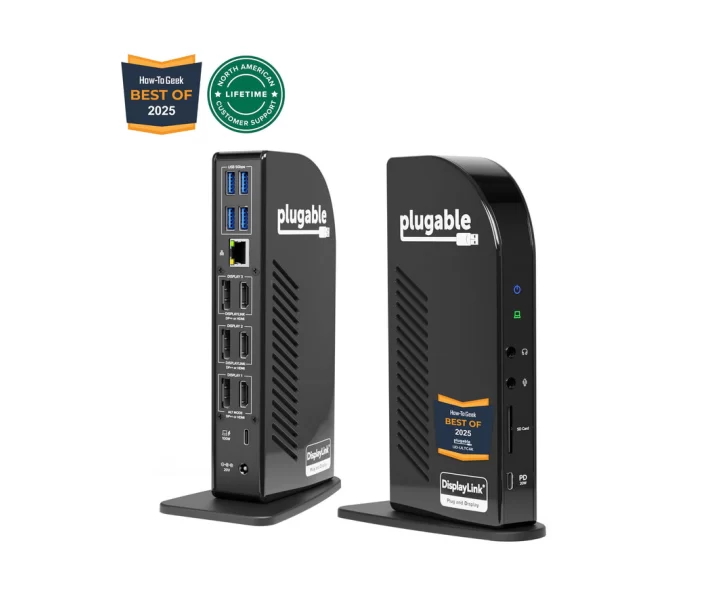

Plugable USB-C Triple 4K Monitor Docking Station with 100W Laptop Charging özellikleri ve fiyatları

Plugable USB-C Triple 4K Monitor Docking Station with 100W Laptop Charging teknik özellikleri

Model kodu

UD-ULTC4K

Üretici parça kodu

UD-ULTC4K

Hub / dock türü

Docking Station

Ana cihaz bağlantısı

Port: 1x USB-C | Placement: Rear | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Features: USB Power Delivery

USB bağlantıları

Port: 4x USB-A | Placement: Rear | Version and Link Rate: USB 3.0 (5Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W | Port: 1x USB-C | Placement: Front | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Features: USB Power Delivery | Voltage: 9V | Amperage: 2200mA | Wattage: 19.8W

Görüntü çıkışları

Port: 1x HDMI 4K or DisplayPort (Output) | Placement: Rear | Specification: DisplayPort 1.2 or HDMI 2.0 | Max Resolution and Refresh Rate: 3440x1440 @ 60Hz 2560x1440 @ 60Hz 2560x1080 @ 60Hz 1920x1200 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz | HDCP: Host Dependent | Port: 2x HDMI 4K or DisplayPort (Output) | Placement: Rear | Specification: DisplayPort 1.2 or HDMI 2.0 | Max Resolution and Refresh Rate: 3440x1440 @ 60Hz 2560x1440 @ 60Hz 2560x1080 @ 60Hz 1920x1200 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz | HDCP: Not Supported | Chipset: DL-6950 DisplayLink

Görüntü kipleri ve bağlantı koşulları

Host Stream Specification: DisplayPort 1.2 or HDMI 2.0 | Host Port Type: Thunderbolt™ 3 or USB-C | Number of Displays Used: 1, 2, or 3 | Max Resolution at Display Count: 3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 2560x1080 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz

Ses bağlantıları

Port: Headphone Jack Line Out | Placement: Front | Connection: 3.5mm (TRS) | Max Bit Depth and Sample Rate: 16-bit 48KHz | Signal Output: Analog | Channels: 2 | Chipset: DL-6950 DisplayLink | Port: Microphone Jack Line In | Placement: Front | Connection: 3.5mm (TRS) | Max Bit Depth and Sample Rate: 16-bit 48KHz | Signal Output: Analog | Channels: 2 | Chipset: DL-6950 DisplayLink | Port: DisplayPort Output | Placement: Rear | Connection: DisplayPort | Max Bit Depth and Sample Rate: Host Dependent | Signal Output: Digital | Channels: Host Dependent | Port: DisplayPort Output | Placement: Rear | Connection: DisplayLink DisplayPort | Max Bit Depth and Sample Rate: 16-bit 48KHz | Signal Output: Digital | Channels: 6* | Chipset: DL-6950 DisplayLink | Port: DisplayPort Output | Placement: Rear | Connection: DisplayLink DisplayPort | Max Bit Depth and Sample Rate: 16-bit 48KHz | Signal Output: Digital | Channels: 6* | Chipset: DL-6950 DisplayLink | Port: HDMI 4K Output | Placement: Rear | Connection: HDMI | Max Bit Depth and Sample Rate: Host Dependent | Signal Output: Digital | Channels: Host Dependent | Port: HDMI 4K Output | Placement: Rear | Connection: DisplayLink HDMI | Max Bit Depth and Sample Rate: 16-bit 48KHz | Signal Output: Digital | Channels: 6* | Chipset: DL-6950 DisplayLink | Port: HDMI 4K Output | Placement: Rear | Connection: DisplayLink HDMI | Max Bit Depth and Sample Rate: 16-bit 48KHz | Signal Output: Digital | Channels: 6* | Chipset: DL-6950 DisplayLink

Ethernet bağlantıları

Port: DisplayLink Gigabit Ethernet | Placement: Rear | Version and Link Rate: 1000BASE-T | Chipset: DL-6950 DisplayLink

Kart okuyucu

Media Interface: SD or SDHC or SDXC or MMC | Bus Interface: Ultra-High Speed II (UHS-II) | Bus Speed: 312 MB/s | Chipset: Genesys Logic GL3232S

Kutu içeriği

Item and Quantity: 1x Plugable USB-C 4K Triple Display Docking Station | Item and Quantity: 1x 10Gbps USB-C to USB-C Cable | Item and Quantity: 1x 135W Power Adapter | Item and Quantity: 1x Quick Start Guide

Verilen kablolar ve uzunlukları

Port Type (Side 1): Male USB-C | Cable Specification: USB 3.2 Gen 2 (10Gbps) | Port Type (Side 2): USB-C | Cable Length: 1.0m/3.28ft | External Power for Cable: No | Port Type (Side 1): Male IEC Type B | Port Type (Side 2): IEC C5/C6 | Cable Length: 1.88m/6.17ft | External Power for Cable: No

LED göstergeleri

LED Number: 1 | Shape: Power Symbol | Color: Blue | Status: Solid | Definition: Powered on | LED Number: 2 | Shape: Laptop Icon | Color: Green | Status: Solid | Definition: Active host connection

Boyutlar

20 x 7.3 x 13.6 centimeters 7.9 x 2.9 x 5.4 inches

Ağırlık

624 g

Ana cihaza güç aktarımı ve koşulları

Port: USB-C to Host | Placement: Rear | Power Host / Device: Host | Connection Type: USB-C Power Delivery | Notes: Check Compatibility Table | Voltage: 20.0V | Amperage: 5.0A | Wattage: 100.0W

Dock güç girişi

Port: Power Supply | Placement: Rear | Power Host / Device: Device | Connection Type: Region-specific Power Adapter | AC Inlet: IEC C5/C6 | Voltage: 20.0V | Amperage: 6.75A | Wattage: 135.0W

Üreticinin ayrıntılı teknik bilgileri

In The Box / Item and Quantity: 1x Plugable USB-C 4K Triple Display Docking Station, In The Box / Item and Quantity: 1x 10Gbps USB-C to USB-C Cable, In The Box / Item and Quantity: 1x 135W Power Adapter, In The Box / Item and Quantity: 1x Quick Start Guide, Included Cables / Port Type (Side 1): Male USB-C | Cable Specification: USB 3.2 Gen 2 (10Gbps) | Port Type (Side 2): USB-C | Cable Length: 1.0m/3.28ft | External Power for Cable: No, Included Cables / Port Type (Side 1): Male IEC Type B | Port Type (Side 2): IEC C5/C6 | Cable Length: 1.88m/6.17ft | External Power for Cable: No, LEDs / LED Number: 1 | Shape: Power Symbol | Color: Blue | Status: Solid | Definition: Powered on, LEDs / LED Number: 2 | Shape: Laptop Icon | Color: Green | Status: Solid | Definition: Active host connection, Video / Port: 1x HDMI 4K or DisplayPort (Output) | Placement: Rear | Specification: DisplayPort 1.2 or HDMI 2.0 | Max Resolution and Refresh Rate: 3440x1440 @ 60Hz 2560x1440 @ 60Hz 2560x1080 @ 60Hz 1920x1200 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz | HDCP: Host Dependent, Video / Port: 2x HDMI 4K or DisplayPort (Output) | Placement: Rear | Specification: DisplayPort 1.2 or HDMI 2.0 | Max Resolution and Refresh Rate: 3440x1440 @ 60Hz 2560x1440 @ 60Hz 2560x1080 @ 60Hz 1920x1200 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz | HDCP: Not Supported | Chipset: DL-6950 DisplayLink, Video Output Modes / Host Stream Specification: DisplayPort 1.2 or HDMI 2.0 | Host Port Type: Thunderbolt™ 3 or USB-C | Number of Displays Used: 1, 2, or 3 | Max Resolution at Display Count: 3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 2560x1080 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz, Audio / Port: Headphone Jack Line Out | Placement: Front | Connection: 3.5mm (TRS) | Max Bit Depth and Sample Rate: 16-bit 48KHz | Signal Output: Analog | Channels: 2 | Chipset: DL-6950 DisplayLink, Audio / Port: Microphone Jack Line In | Placement: Front | Connection: 3.5mm (TRS) | Max Bit Depth and Sample Rate: 16-bit 48KHz | Signal Output: Analog | Channels: 2 | Chipset: DL-6950 DisplayLink, Audio / Port: DisplayPort Output | Placement: Rear | Connection: DisplayPort | Max Bit Depth and Sample Rate: Host Dependent | Signal Output: Digital | Channels: Host Dependent, Audio / Port: DisplayPort Output | Placement: Rear | Connection: DisplayLink DisplayPort | Max Bit Depth and Sample Rate: 16-bit 48KHz | Signal Output: Digital | Channels: 6* | Chipset: DL-6950 DisplayLink, Audio / Port: DisplayPort Output | Placement: Rear | Connection: DisplayLink DisplayPort | Max Bit Depth and Sample Rate: 16-bit 48KHz | Signal Output: Digital | Channels: 6* | Chipset: DL-6950 DisplayLink, Audio / Port: HDMI 4K Output | Placement: Rear | Connection: HDMI | Max Bit Depth and Sample Rate: Host Dependent | Signal Output: Digital | Channels: Host Dependent, Audio / Port: HDMI 4K Output | Placement: Rear | Connection: DisplayLink HDMI | Max Bit Depth and Sample Rate: 16-bit 48KHz | Signal Output: Digital | Channels: 6* | Chipset: DL-6950 DisplayLink, Audio / Port: HDMI 4K Output | Placement: Rear | Connection: DisplayLink HDMI | Max Bit Depth and Sample Rate: 16-bit 48KHz | Signal Output: Digital | Channels: 6* | Chipset: DL-6950 DisplayLink, Power / Port: Power Supply | Placement: Rear | Power Host / Device: Device | Connection Type: Region-specific Power Adapter | AC Inlet: IEC C5/C6 | Voltage: 20.0V | Amperage: 6.75A | Wattage: 135.0W, Power / Port: USB-C to Host | Placement: Rear | Power Host / Device: Host | Connection Type: USB-C Power Delivery | Notes: Check Compatibility Table | Voltage: 20.0V | Amperage: 5.0A | Wattage: 100.0W, USB To Devices / Port: 4x USB-A | Placement: Rear | Version and Link Rate: USB 3.0 (5Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W, USB To Devices / Port: 1x USB-C | Placement: Front | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Features: USB Power Delivery | Voltage: 9V | Amperage: 2200mA | Wattage: 19.8W, Connection To Host / Port: 1x USB-C | Placement: Rear | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Features: USB Power Delivery, Wired Network / Port: DisplayLink Gigabit Ethernet | Placement: Rear | Version and Link Rate: 1000BASE-T | Chipset: DL-6950 DisplayLink, Physical Stats / Item: USB-C Docking Station | Size (H x W x D) or Length: 20 x 7.3 x 13.6 centimeters 7.9 x 2.9 x 5.4 inches | Weight: 624 grams 22 ounces | SKU or Part Number: UD-ULTC4K, Card Reader / Media Interface: SD or SDHC or SDXC or MMC | Bus Interface: Ultra-High Speed II (UHS-II) | Bus Speed: 312 MB/s | Chipset: Genesys Logic GL3232S
