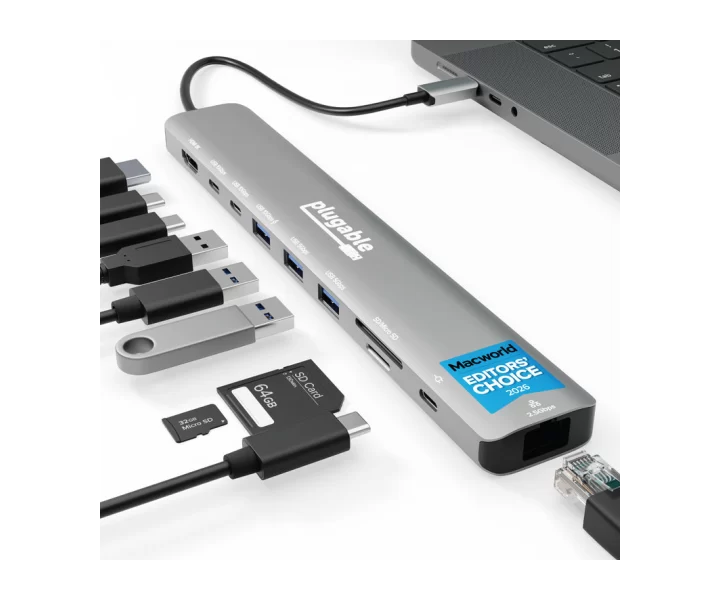

Plugable USB-C Hub 10-in-1 with 4K 144Hz HDMI, 2.5Gbps Ethernet, 140W Pass-Through Charging özellikleri ve fiyatları

Plugable USB-C Hub 10-in-1 with 4K 144Hz HDMI, 2.5Gbps Ethernet, 140W Pass-Through Charging teknik özellikleri

Model kodu

USBC-10IN1E

Üretici parça kodu

USBC-10IN1E

Hub / dock türü

Hub

Ana cihaz bağlantısı

Port: 1x USB-C | Placement: Left | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Features: Alternate Mode Video or USB Power Delivery

USB bağlantıları

Port: 2x USB-C | Placement: Front | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Voltage: 5V | Amperage: 1500mA | Wattage: 7.5W | Port: 1x USB-A | Placement: Front | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Features: Battery Charging 1.2 | Voltage: 5V | Amperage: 1500mA | Wattage: 7.5W | Port: 2x USB-A | Placement: Front | Version and Link Rate: USB 3.2 Gen 1 (5Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W

Görüntü çıkışları

Port: 1x HDMI 8K (Output) | Placement: Front | Specification: HDMI 2.1 | Max Resolution and Refresh Rate: 3840x2160 @ 144Hz 3840x1600 @ 144Hz 3440x1440 @ 144Hz 2560x1440 @ 144Hz 1920x1080 @ 240Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 7680x4320 @ 30Hz | HDCP: Display Dependent | Chipset: VL605 VIA

Görüntü kipleri ve bağlantı koşulları

Host Stream Specification: DisplayPort 1.4 HBR3, DSC 1.2 | Host Port Type: USB-C (with Alt Mode) | Number of Displays Used: 1 | Max Resolution at Display Count: 3840x2160 @ 144Hz 3840x1600 @ 144Hz 3440x1440 @ 144Hz 2560x1440 @ 144Hz 1920x1080 @ 240Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 7680x4320 @ 30Hz

Ses bağlantıları

Port: HDMI Output | Placement: Front | Connection: HDMI | Signal Output: Digital | Chipset: VL605 VIA

Ethernet bağlantıları

Port: 2.5 Gigabit Ethernet | Placement: Right | Version and Link Rate: 2.5GBASE-T | Chipset: RTL8156 Realtek

Kart okuyucu

Media Interface: SD or SDHC or SDXC or MMC | Bus Interface: Ultra-High Speed I (UHS-I) | Bus Speed: 104 MB/s | Chipset: Genesys Logic GL3224 | Media Interface: Micro SD | Bus Interface: Ultra-High Speed I (UHS-I) | Bus Speed: 104 MB/s | Chipset: Genesys Logic GL3224

Kutu içeriği

Item and Quantity: 1x Plugable USB-C 10-in-1 hub | Item and Quantity: 1x Quick Start Guide

Verilen kablolar ve uzunlukları

Port Type (Side 1): Male USB-C (with Alt Mode) | Cable Specification: USB 3.2 Gen 2 (10Gbps) | Port Type (Side 2): Captive Cable (Non-Removable) | Cable Length: 0.17m/0.56ft | External Power for Cable: No

Boyutlar

1.4 x 3.4 x 21.6 centimeters 0.6 x 1.3 x 8.5 inches

Ağırlık

109 g

Ana cihaza güç aktarımı ve koşulları

Port: USB-C to Host | Placement: Cable End | Power Host / Device: Host | Connection Type: USB-C Power Delivery 3.1 | Notes: When Self Powered (USB-C Power Adapter is Connected) | Voltage: Up to 28.0V | Amperage: 4.46A | Wattage: Up to 125.0W

Dock güç girişi

Port: USB-C Power Passthrough | Placement: Front | Power Host / Device: Device | Connection Type: USB-C Power Delivery 3.1 | Notes: When Self Powered (USB-C Power Adapter is Connected) | Voltage: Up to 28.0V | Amperage: 5.0A | Wattage: Up to 140.0W

Üreticinin ayrıntılı teknik bilgileri

In The Box / Item and Quantity: 1x Plugable USB-C 10-in-1 hub, In The Box / Item and Quantity: 1x Quick Start Guide, Included Cables / Port Type (Side 1): Male USB-C (with Alt Mode) | Cable Specification: USB 3.2 Gen 2 (10Gbps) | Port Type (Side 2): Captive Cable (Non-Removable) | Cable Length: 0.17m/0.56ft | External Power for Cable: No, Video / Port: 1x HDMI 8K (Output) | Placement: Front | Specification: HDMI 2.1 | Max Resolution and Refresh Rate: 3840x2160 @ 144Hz 3840x1600 @ 144Hz 3440x1440 @ 144Hz 2560x1440 @ 144Hz 1920x1080 @ 240Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 7680x4320 @ 30Hz | HDCP: Display Dependent | Chipset: VL605 VIA, Video Output Modes / Host Stream Specification: DisplayPort 1.4 HBR3, DSC 1.2 | Host Port Type: USB-C (with Alt Mode) | Number of Displays Used: 1 | Max Resolution at Display Count: 3840x2160 @ 144Hz 3840x1600 @ 144Hz 3440x1440 @ 144Hz 2560x1440 @ 144Hz 1920x1080 @ 240Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 7680x4320 @ 30Hz, Audio / Port: HDMI Output | Placement: Front | Connection: HDMI | Signal Output: Digital | Chipset: VL605 VIA, Power / Port: USB-C Power Passthrough | Placement: Front | Power Host / Device: Device | Connection Type: USB-C Power Delivery 3.1 | Notes: When Self Powered (USB-C Power Adapter is Connected) | Voltage: Up to 28.0V | Amperage: 5.0A | Wattage: Up to 140.0W, Power / Port: USB-C to Host | Placement: Cable End | Power Host / Device: Host | Connection Type: USB-C Power Delivery 3.1 | Notes: When Self Powered (USB-C Power Adapter is Connected) | Voltage: Up to 28.0V | Amperage: 4.46A | Wattage: Up to 125.0W, USB To Devices / Port: 2x USB-C | Placement: Front | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Voltage: 5V | Amperage: 1500mA | Wattage: 7.5W, USB To Devices / Port: 1x USB-A | Placement: Front | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Features: Battery Charging 1.2 | Voltage: 5V | Amperage: 1500mA | Wattage: 7.5W, USB To Devices / Port: 2x USB-A | Placement: Front | Version and Link Rate: USB 3.2 Gen 1 (5Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W, Connection To Host / Port: 1x USB-C | Placement: Left | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Features: Alternate Mode Video or USB Power Delivery, Wired Network / Port: 2.5 Gigabit Ethernet | Placement: Right | Version and Link Rate: 2.5GBASE-T | Chipset: RTL8156 Realtek, Physical Stats / Item: USB-C Hub Main | Size (H x W x D) or Length: 1.4 x 3.4 x 21.6 centimeters 0.6 x 1.3 x 8.5 inches | Weight: 109 grams 3.8 ounces | SKU or Part Number: USBC-10IN1E, Card Reader / Media Interface: SD or SDHC or SDXC or MMC | Bus Interface: Ultra-High Speed I (UHS-I) | Bus Speed: 104 MB/s | Chipset: Genesys Logic GL3224, Card Reader / Media Interface: Micro SD | Bus Interface: Ultra-High Speed I (UHS-I) | Bus Speed: 104 MB/s | Chipset: Genesys Logic GL3224

Güncel mağaza teklifleri

Son 48 saat içinde doğrulanmış, stokta mağaza teklifi yok. Eski fiyatlar güncel teklif olarak gösterilmez.
