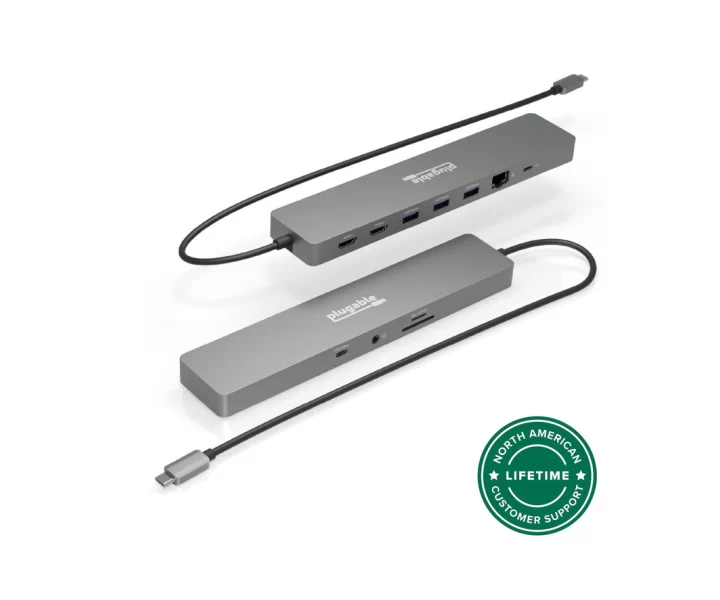

Plugable 11-in-1 USB-C Hub 100W Pass-through, Dual Monitor 4K 60Hz HDMI özellikleri ve fiyatları

Plugable 11-in-1 USB-C Hub 100W Pass-through, Dual Monitor 4K 60Hz HDMI teknik özellikleri

Model kodu

USBC-11IN1E

Üretici parça kodu

USBC-11IN1E

Hub / dock türü

Hub

Ana cihaz bağlantısı

Port: 1x USB-C | Placement: Side | Version and Link Rate: USB 3.0 (5Gbps) | Features: Alternate Mode Video

USB bağlantıları

Port: 3x USB-A | Placement: Rear | Version and Link Rate: USB 3.0 (5Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W | Port: 1x USB-C | Placement: Front | Version and Link Rate: USB 3.0 (5Gbps) | Voltage: 5V | Amperage: 1500mA | Wattage: 7.5W

Görüntü çıkışları

Port: 2x HDMI 4K (Output) | Placement: Rear | Specification: HDMI 2.0 | Max Resolution and Refresh Rate: 3840x2160 @ 30Hz 3840x1600 @ 30Hz 3440x1440 @ 30Hz 2560x1440 @ 60Hz 1920x1200 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz | HDCP: Display Dependent | Chipset: VMM6210 Synaptics

Ses bağlantıları

Port: HDMI Output | Placement: Rear | Connection: HDMI | Max Bit Depth and Sample Rate: Host Dependent | Signal Output: Digital | Channels: Host Dependent | Port: Headset Jack Bi-Directional | Placement: Front | Connection: 3.5mm (TRRS) | Signal Output: Analog | Channels: 2 | Chipset: VMM6210

Ethernet bağlantıları

Port: Gigabit Ethernet | Placement: Rear | Version and Link Rate: 1000BASE-T | Chipset: AX88179A ASIX

Kart okuyucu

Media Interface: Micro SD | Bus Interface: Ultra-High Speed I (UHS-I) | Bus Speed: 104 MB/s | Chipset: Realtek RTS5326 | Media Interface: SD or SDHC or SDXC or MMC | Bus Interface: Ultra-High Speed II (UHS-II) | Bus Speed: 312 MB/s | Chipset: Realtek RTS5326

Kutu içeriği

Item and Quantity: 1x Plugable USB-C 11-in-1 hub | Item and Quantity: 1x Quick Start Guide

Verilen kablolar ve uzunlukları

Port Type (Side 1): Male USB-C (with Alt Mode) | Cable Specification: USB 3.0 (5Gbps) | Port Type (Side 2): Captive Cable (Non-Removable) | Cable Length: 0.44m/1.45ft | External Power for Cable: No

Boyutlar

1.5 x 22.2 x 4.5 centimeters 0.6 x 8.7 x 1.8 inches

Ağırlık

188 g

Ana cihaza güç aktarımı ve koşulları

Port: USB-C to Host | Placement: Side | Power Host / Device: Host | Connection Type: USB-C Power Delivery 3.0 | Notes: When Self Powered (USB-C Power Adapter is Connected) | Voltage: Up to 20.0V | Amperage: 4.6A | Wattage: Up to 92.0W

Dock güç girişi

Port: USB-C Power Passthrough | Placement: Rear | Power Host / Device: Device | Connection Type: USB-C Power Delivery 3.0 | Voltage: Up to 20.0V | Amperage: 5.0A | Wattage: Up to 100.0W

Üreticinin ayrıntılı teknik bilgileri

In The Box / Item and Quantity: 1x Plugable USB-C 11-in-1 hub, In The Box / Item and Quantity: 1x Quick Start Guide, Included Cables / Port Type (Side 1): Male USB-C (with Alt Mode) | Cable Specification: USB 3.0 (5Gbps) | Port Type (Side 2): Captive Cable (Non-Removable) | Cable Length: 0.44m/1.45ft | External Power for Cable: No, Video / Port: 2x HDMI 4K (Output) | Placement: Rear | Specification: HDMI 2.0 | Max Resolution and Refresh Rate: 3840x2160 @ 30Hz 3840x1600 @ 30Hz 3440x1440 @ 30Hz 2560x1440 @ 60Hz 1920x1200 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz | HDCP: Display Dependent | Chipset: VMM6210 Synaptics, Audio / Port: HDMI Output | Placement: Rear | Connection: HDMI | Max Bit Depth and Sample Rate: Host Dependent | Signal Output: Digital | Channels: Host Dependent, Audio / Port: Headset Jack Bi-Directional | Placement: Front | Connection: 3.5mm (TRRS) | Signal Output: Analog | Channels: 2 | Chipset: VMM6210, Power / Port: USB-C Power Passthrough | Placement: Rear | Power Host / Device: Device | Connection Type: USB-C Power Delivery 3.0 | Voltage: Up to 20.0V | Amperage: 5.0A | Wattage: Up to 100.0W, Power / Port: USB-C to Host | Placement: Side | Power Host / Device: Host | Connection Type: USB-C Power Delivery 3.0 | Notes: When Self Powered (USB-C Power Adapter is Connected) | Voltage: Up to 20.0V | Amperage: 4.6A | Wattage: Up to 92.0W, USB To Devices / Port: 3x USB-A | Placement: Rear | Version and Link Rate: USB 3.0 (5Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W, USB To Devices / Port: 1x USB-C | Placement: Front | Version and Link Rate: USB 3.0 (5Gbps) | Voltage: 5V | Amperage: 1500mA | Wattage: 7.5W, Connection To Host / Port: 1x USB-C | Placement: Side | Version and Link Rate: USB 3.0 (5Gbps) | Features: Alternate Mode Video, Wired Network / Port: Gigabit Ethernet | Placement: Rear | Version and Link Rate: 1000BASE-T | Chipset: AX88179A ASIX, Physical Stats / Item: USBC-11IN1E HUB | Size (H x W x D) or Length: 1.5 x 22.2 x 4.5 centimeters 0.6 x 8.7 x 1.8 inches | Weight: 188 grams 6.6 ounces | SKU or Part Number: USBC-11IN1E, Card Reader / Media Interface: Micro SD | Bus Interface: Ultra-High Speed I (UHS-I) | Bus Speed: 104 MB/s | Chipset: Realtek RTS5326, Card Reader / Media Interface: SD or SDHC or SDXC or MMC | Bus Interface: Ultra-High Speed II (UHS-II) | Bus Speed: 312 MB/s | Chipset: Realtek RTS5326
