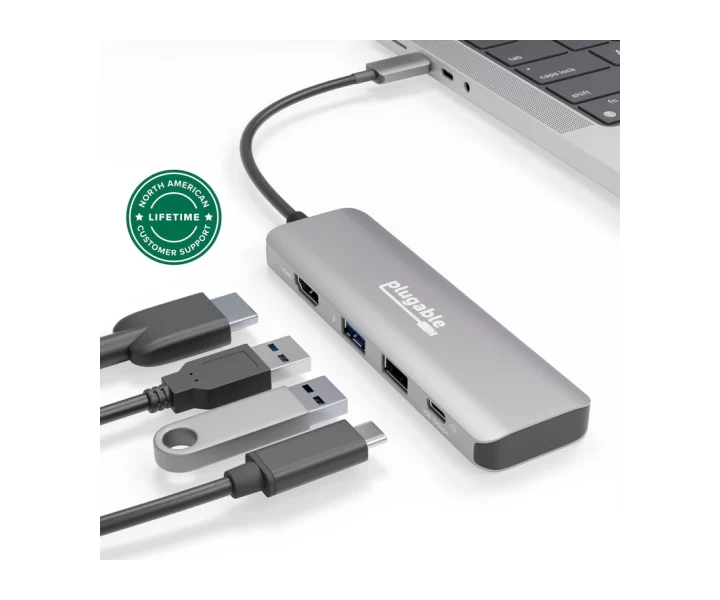

Plugable 4-in-1 USB-C Hub with 4K HDMI, 100W Charging özellikleri ve fiyatları

Plugable 4-in-1 USB-C Hub with 4K HDMI, 100W Charging teknik özellikleri

Model kodu

USBC-4IN1

Üretici parça kodu

USBC-4IN1

Hub / dock türü

Hub

Ana cihaz bağlantısı

Port: 1x USB-C | Placement: Front | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Features: Alternate Mode Video

USB bağlantıları

Port: 1x USB-C | Placement: Left | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Features: USB Power Delivery | Voltage: 5V | Amperage: 1500mA | Wattage: 7.5W | Port: 1x USB-A | Placement: Left | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Features: Battery Charging 1.2 | Voltage: 5V | Amperage: 1500mA | Wattage: 7.5W | Port: 1x USB-A | Placement: Left | Version and Link Rate: USB 2.0 (480Mbps) | Voltage: 5V | Amperage: 500mA | Wattage: 2.5W

Görüntü çıkışları

Port: 1x HDMI 4K (Output) | Placement: Rear | Specification: HDMI 2.0 | Max Resolution and Refresh Rate: 3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 2560x1080 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz | HDCP: Display Dependent | Chipset: PS188 Parade

Görüntü kipleri ve bağlantı koşulları

Host Stream Specification: HDMI 2.0 | Host Port Type: USB-C (with Alt Mode) | Number of Displays Used: 1 | Max Resolution at Display Count: 3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 2560x1080 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz

Ses bağlantıları

Port: HDMI Output | Placement: Left | Connection: HDMI | Signal Output: Digital

Verilen kablolar ve uzunlukları

Port Type (Side 1): Male USB-C (with Alt Mode) | Cable Specification: USB 3.2 Gen 2 (10Gbps) | Port Type (Side 2): Captive Cable (Non-Removable) | Cable Length: 0.22m/0.72ft | External Power for Cable: No

Boyutlar

1.15 x 11.5 x 3.4 centimeters 0.5 x 4.5 x 1.3 inches

Ağırlık

56 g

Ana cihaza güç aktarımı ve koşulları

Port: USB-C to Host | Placement: Left | Power Host / Device: Host | Connection Type: USB-C Power Delivery | Notes: When Self Powered (USB-C Power Adapter is Connected) | Voltage: Up to 20.0V | Amperage: 4.6A | Wattage: Up to 92.0W

Dock güç girişi

Port: USB-C Power Passthrough | Placement: Left | Power Host / Device: Device | Connection Type: USB-C Power Delivery | Voltage: Up to 20.0V | Amperage: 5.0A | Wattage: Up to 100.0W

Üreticinin ayrıntılı teknik bilgileri

Included Cables / Port Type (Side 1): Male USB-C (with Alt Mode) | Cable Specification: USB 3.2 Gen 2 (10Gbps) | Port Type (Side 2): Captive Cable (Non-Removable) | Cable Length: 0.22m/0.72ft | External Power for Cable: No, Video / Port: 1x HDMI 4K (Output) | Placement: Rear | Specification: HDMI 2.0 | Max Resolution and Refresh Rate: 3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 2560x1080 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz | HDCP: Display Dependent | Chipset: PS188 Parade, Video Output Modes / Host Stream Specification: HDMI 2.0 | Host Port Type: USB-C (with Alt Mode) | Number of Displays Used: 1 | Max Resolution at Display Count: 3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 2560x1080 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz, Audio / Port: HDMI Output | Placement: Left | Connection: HDMI | Signal Output: Digital, Power / Port: USB-C Power Passthrough | Placement: Left | Power Host / Device: Device | Connection Type: USB-C Power Delivery | Voltage: Up to 20.0V | Amperage: 5.0A | Wattage: Up to 100.0W, Power / Port: USB-C to Host | Placement: Left | Power Host / Device: Host | Connection Type: USB-C Power Delivery | Notes: When Self Powered (USB-C Power Adapter is Connected) | Voltage: Up to 20.0V | Amperage: 4.6A | Wattage: Up to 92.0W, USB To Devices / Port: 1x USB-C | Placement: Left | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Features: USB Power Delivery | Voltage: 5V | Amperage: 1500mA | Wattage: 7.5W, USB To Devices / Port: 1x USB-A | Placement: Left | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Features: Battery Charging 1.2 | Voltage: 5V | Amperage: 1500mA | Wattage: 7.5W, USB To Devices / Port: 1x USB-A | Placement: Left | Version and Link Rate: USB 2.0 (480Mbps) | Voltage: 5V | Amperage: 500mA | Wattage: 2.5W, Connection To Host / Port: 1x USB-C | Placement: Front | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Features: Alternate Mode Video, Physical Stats / Item: USB-C 4 in 1 Hub | Size (H x W x D) or Length: 1.15 x 11.5 x 3.4 centimeters 0.5 x 4.5 x 1.3 inches | Weight: 56 grams 2 ounces | SKU or Part Number: USBC-4IN1
