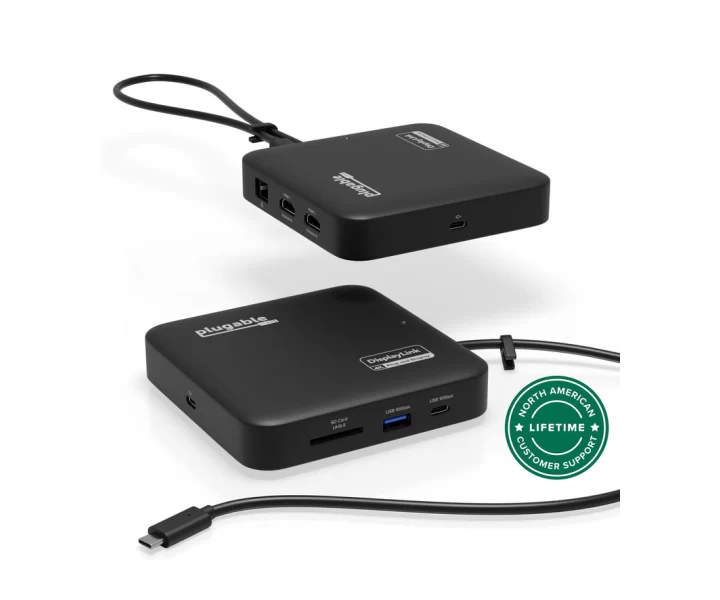

Plugable USB-C Dual HDMI Docking Station, 100W Pass Through Charging özellikleri ve fiyatları

Plugable USB-C Dual HDMI Docking Station, 100W Pass Through Charging teknik özellikleri

Model kodu

USBC-6950PDZ

Üretici parça kodu

USBC-6950PDZ

Hub / dock türü

Docking Station

Ana cihaz bağlantısı

Port: 1x USB-C | Placement: Rear | Version and Link Rate: USB 3.2 Gen 2 (10Gbps)

USB bağlantıları

Port: 1x USB-A | Placement: Front | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W | Port: 1x USB-C | Placement: Front | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W

Görüntü çıkışları

Port: 2x HDMI 4K (Output) | Placement: Rear | Specification: HDMI 2.0 | Max Resolution and Refresh Rate: 3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 2560x1080 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz | HDCP: Not Supported | Chipset: DL-6950 DisplayLink

Ses bağlantıları

Port: HDMI 4K Output | Placement: Rear | Connection: HDMI | Signal Output: Digital | Channels: 2 | Chipset: DL-6950 DisplayLink

Ethernet bağlantıları

Port: DisplayLink Gigabit Ethernet | Placement: Rear | Version and Link Rate: 1000BASE-T | Chipset: DL-6950 DisplayLink

Kart okuyucu

Media Interface: SD or SDHC or SDXC or MMC | Bus Interface: Ultra-High Speed II (UHS-II) | Bus Speed: 312 MB/s | Chipset: Genesys Logic GL3232S

Kutu içeriği

Item and Quantity: 1x Plugable USBC-6950PDZ Dual HDMI Portable Docking Station | Item and Quantity: 1x Quick Start Guide

Verilen kablolar ve uzunlukları

Port Type (Side 1): Male USB-C | Cable Specification: USB 3.0 (5Gbps) | Port Type (Side 2): Captive Cable (Non-Removable) | Cable Length: 0.5m/1.64ft | External Power for Cable: No

LED göstergeleri

LED Number: 1 | Shape: Dot | Color: White | Status: Solid | Definition: Active host connection | Notes: Location: Top

Boyutlar

2.6 x 12 x 12 centimeters 1 x 4.7 x 4.7 inches

Ağırlık

250 g

Ana cihaza güç aktarımı ve koşulları

Port: USB-C to Host | Placement: Right | Power Host / Device: Host | Connection Type: USB-C Power Delivery 3.0 | Notes: When Self Powered (USB-C Power Adapter is Connected) | Voltage: Up to 20.0V | Amperage: 4.1A | Wattage: Up to 82.0W

Dock güç girişi

Port: USB-C Power Passthrough | Placement: Left | Power Host / Device: Device | Connection Type: USB-C Power Delivery 3.0 | Voltage: Up to 20.0V | Amperage: 5.0A | Wattage: Up to 100.0W

Üreticinin ayrıntılı teknik bilgileri

In The Box / Item and Quantity: 1x Plugable USBC-6950PDZ Dual HDMI Portable Docking Station, In The Box / Item and Quantity: 1x Quick Start Guide, Included Cables / Port Type (Side 1): Male USB-C | Cable Specification: USB 3.0 (5Gbps) | Port Type (Side 2): Captive Cable (Non-Removable) | Cable Length: 0.5m/1.64ft | External Power for Cable: No, LEDs / LED Number: 1 | Shape: Dot | Color: White | Status: Solid | Definition: Active host connection | Notes: Location: Top, Video / Port: 2x HDMI 4K (Output) | Placement: Rear | Specification: HDMI 2.0 | Max Resolution and Refresh Rate: 3840x2160 @ 60Hz 3840x1600 @ 60Hz 3440x1440 @ 60Hz 2560x1440 @ 60Hz 2560x1080 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz | HDCP: Not Supported | Chipset: DL-6950 DisplayLink, Audio / Port: HDMI 4K Output | Placement: Rear | Connection: HDMI | Signal Output: Digital | Channels: 2 | Chipset: DL-6950 DisplayLink, Power / Port: USB-C Power Passthrough | Placement: Left | Power Host / Device: Device | Connection Type: USB-C Power Delivery 3.0 | Voltage: Up to 20.0V | Amperage: 5.0A | Wattage: Up to 100.0W, Power / Port: USB-C to Host | Placement: Right | Power Host / Device: Host | Connection Type: USB-C Power Delivery 3.0 | Notes: When Self Powered (USB-C Power Adapter is Connected) | Voltage: Up to 20.0V | Amperage: 4.1A | Wattage: Up to 82.0W, USB To Devices / Port: 1x USB-A | Placement: Front | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W, USB To Devices / Port: 1x USB-C | Placement: Front | Version and Link Rate: USB 3.2 Gen 2 (10Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W, Connection To Host / Port: 1x USB-C | Placement: Rear | Version and Link Rate: USB 3.2 Gen 2 (10Gbps), Wired Network / Port: DisplayLink Gigabit Ethernet | Placement: Rear | Version and Link Rate: 1000BASE-T | Chipset: DL-6950 DisplayLink, Physical Stats / Item: USB-C Hub Main | Size (H x W x D) or Length: 2.6 x 12 x 12 centimeters 1 x 4.7 x 4.7 inches | Weight: 250 grams 8.8 ounces | SKU or Part Number: USBC-6950PDZ, Card Reader / Media Interface: SD or SDHC or SDXC or MMC | Bus Interface: Ultra-High Speed II (UHS-II) | Bus Speed: 312 MB/s | Chipset: Genesys Logic GL3232S
