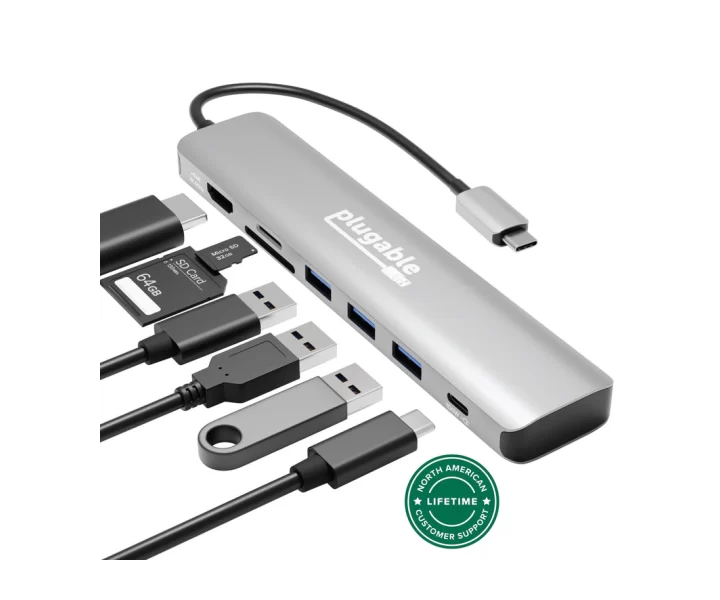

Plugable USB-C Hub 7-in-1 with 4K 60Hz HDMI, 100W Pass-Through Charging özellikleri ve fiyatları

Plugable USB-C Hub 7-in-1 with 4K 60Hz HDMI, 100W Pass-Through Charging teknik özellikleri

Model kodu

USBC-7IN1

Üretici parça kodu

USBC-7IN1

Hub / dock türü

Hub

Ana cihaz bağlantısı

Port: 1x USB-C | Placement: Front | Version and Link Rate: USB 3.0 (5Gbps) | Features: Alternate Mode Video

USB bağlantıları

Port: 3x USB-A | Placement: Left | Version and Link Rate: USB 3.0 (5Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W

Görüntü çıkışları

Port: 1x HDMI 4K (Output) | Placement: Rear | Specification: HDMI 1.4 | Max Resolution and Refresh Rate: 3440x1440 @ 60Hz 2560x1440 @ 60Hz 2560x1080 @ 60Hz 1920x1200 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz | HDCP: Display Dependent | Chipset: ANX7517 Analogix

Ses bağlantıları

Port: HDMI Output | Placement: Front | Connection: HDMI | Max Bit Depth and Sample Rate: Host Dependent | Signal Output: Digital | Channels: Host Dependent | Chipset: ANX7517

Kart okuyucu

Media Interface: Micro SD | Bus Interface: Ultra-High Speed I (UHS-I) | Bus Speed: 104 MB/s | Chipset: Norelsys NS1081B | Media Interface: SD or SDHC or SDXC or MMC | Bus Interface: Ultra-High Speed I (UHS-I) | Bus Speed: 104 MB/s | Chipset: Genesys Logic GL3224

Kutu içeriği

Item and Quantity: 1x Plugable USB-C 7-in-1 hub | Item and Quantity: 1x Quick Start Guide

Verilen kablolar ve uzunlukları

Port Type (Side 1): Male USB-C (with Alt Mode) | Cable Specification: USB 3.0 (5Gbps) | Port Type (Side 2): Captive Cable (Non-Removable) | Cable Length: 0.17m/0.56ft | External Power for Cable: No

Boyutlar

1.3 x 3.5 x 16 centimeters 0.5 x 1.4 x 6.3 inches

Ağırlık

105 g

Ana cihaza güç aktarımı ve koşulları

Port: USB-C to Host | Placement: Front | Power Host / Device: Host | Connection Type: USB-C Power Delivery | Notes: When Self Powered (USB-C Power Adapter is Connected) | Voltage: Up to 20.0V | Amperage: 4.6A | Wattage: Up to 92.0W

Dock güç girişi

Port: USB-C Power Passthrough | Placement: Left | Power Host / Device: Device | Connection Type: USB-C Power Delivery | Voltage: Up to 20.0V | Amperage: 5.0A | Wattage: Up to 100.0W

Üreticinin ayrıntılı teknik bilgileri

In The Box / Item and Quantity: 1x Plugable USB-C 7-in-1 hub, In The Box / Item and Quantity: 1x Quick Start Guide, Included Cables / Port Type (Side 1): Male USB-C (with Alt Mode) | Cable Specification: USB 3.0 (5Gbps) | Port Type (Side 2): Captive Cable (Non-Removable) | Cable Length: 0.17m/0.56ft | External Power for Cable: No, Video / Port: 1x HDMI 4K (Output) | Placement: Rear | Specification: HDMI 1.4 | Max Resolution and Refresh Rate: 3440x1440 @ 60Hz 2560x1440 @ 60Hz 2560x1080 @ 60Hz 1920x1200 @ 60Hz 1920x1080 @ 60Hz 1600x900 @ 60Hz 1280x1024 @ 60Hz 1280x800 @ 60Hz 1280x720 @ 60Hz 1152x864 @ 60Hz 1024x768 @ 60Hz 800x600 @ 60Hz 640x480 @ 60Hz 3840x2160 @ 60Hz | HDCP: Display Dependent | Chipset: ANX7517 Analogix, Audio / Port: HDMI Output | Placement: Front | Connection: HDMI | Max Bit Depth and Sample Rate: Host Dependent | Signal Output: Digital | Channels: Host Dependent | Chipset: ANX7517, Power / Port: USB-C Power Passthrough | Placement: Left | Power Host / Device: Device | Connection Type: USB-C Power Delivery | Voltage: Up to 20.0V | Amperage: 5.0A | Wattage: Up to 100.0W, Power / Port: USB-C to Host | Placement: Front | Power Host / Device: Host | Connection Type: USB-C Power Delivery | Notes: When Self Powered (USB-C Power Adapter is Connected) | Voltage: Up to 20.0V | Amperage: 4.6A | Wattage: Up to 92.0W, USB To Devices / Port: 3x USB-A | Placement: Left | Version and Link Rate: USB 3.0 (5Gbps) | Voltage: 5V | Amperage: 900mA | Wattage: 4.5W, Connection To Host / Port: 1x USB-C | Placement: Front | Version and Link Rate: USB 3.0 (5Gbps) | Features: Alternate Mode Video, Physical Stats / Item: USB-C 7 in 1 hub | Size (H x W x D) or Length: 1.3 x 3.5 x 16 centimeters 0.5 x 1.4 x 6.3 inches | Weight: 105 grams 3.7 ounces | SKU or Part Number: USBC-7IN1, Card Reader / Media Interface: Micro SD | Bus Interface: Ultra-High Speed I (UHS-I) | Bus Speed: 104 MB/s | Chipset: Norelsys NS1081B, Card Reader / Media Interface: SD or SDHC or SDXC or MMC | Bus Interface: Ultra-High Speed I (UHS-I) | Bus Speed: 104 MB/s | Chipset: Genesys Logic GL3224
